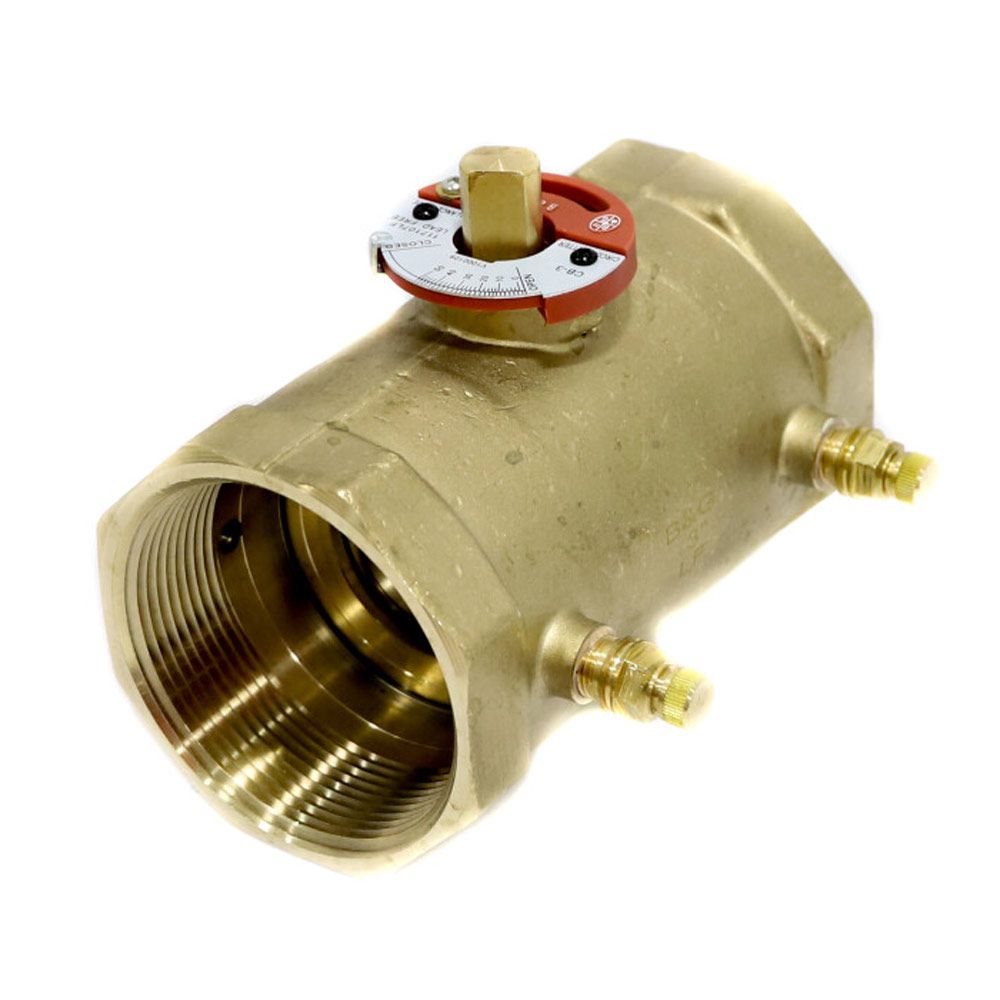

Bell & Gossett 117107LF CB-3 Circuit Setter NPT Lead-Free

Product Description

The Bell & Gossett 117107LF Circuit Setter Plus is a calibrated balance valve designed for precise flow control in HVAC and potable water systems. The 3-inch NPT connection and lead-free construction make it ideal for ensuring compliance and safety in water systems.

• Lead-free brass body enhances system safety.
• Calibrated for precise flow control and balancing.
• Features memory stop indicator for easy presetting without valve adjustment.

Product Highlights

This Circuit Setter offers reliable performance with its 304 stainless steel ball, EPT read-out check valves, and EPDM stem O-rings. Its bi-directional design allows for versatile installation configurations.

Product Information

Standard Information

• Application: Suitable for potable water and HVAC systems.
• Pressure Rating: up to 400 psig.

Technical Specifications

• Connection Size: 3 inches NPT.
• Temperature Range: -4 to 250 degrees Fahrenheit.
• Body Material: Lead-free brass.
• Standards: CSA, ANSI/NSF 372 certified.
