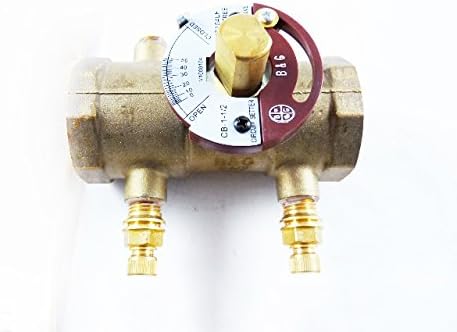

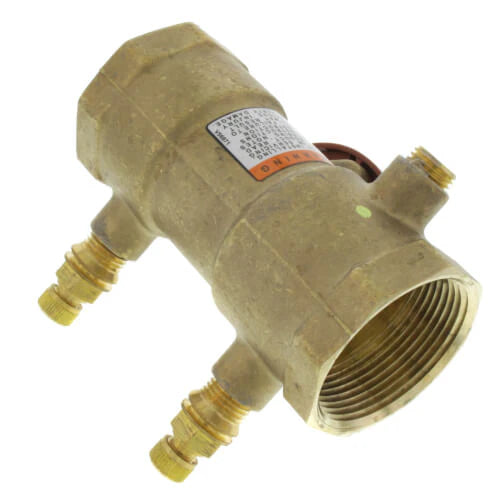

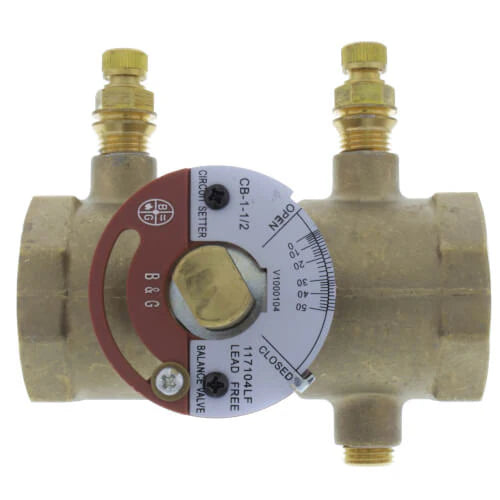

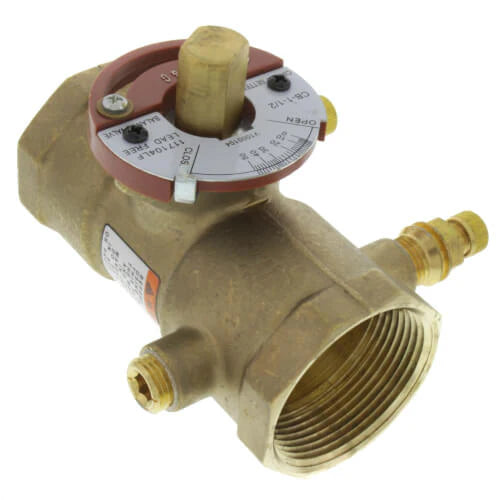

Bell & Gossett 117104LF Circuit Setter Balance Valve 150 psi

Product Description

The Bell & Gossett 117104LF Circuit Setter Balance Valve is a versatile solution for managing fluid flow in various applications. Made of lead-free brass, this valve ensures accurate flow control and system efficiency.

• 1-1/2 NPT connection
• Durable construction
• Easy to clean

Product Highlights

This balance valve is ideal for industrial, commercial, and residential systems. It features a perforated stainless steel screen and a blow-off valve for easy cleaning.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 117104LF
• Category: Power Water Pumps

Technical Specifications

• Ball Material: 304 Stainless Steel
• Connection Size: 1-1/2 inches
• Connection Type: NPT
• Dimension: 4.42 inches L x 3.37 inches W x 3.95 inches H
• Material Specifications: ASTM B283, C69300
• Pressure Rating: 150 psi
• Temperature Rating: -4 to 250 degrees F
• Standards/Certifications: CSA AB1953, Vermont S152, ANSI/NSF 372, 61 annexure G
