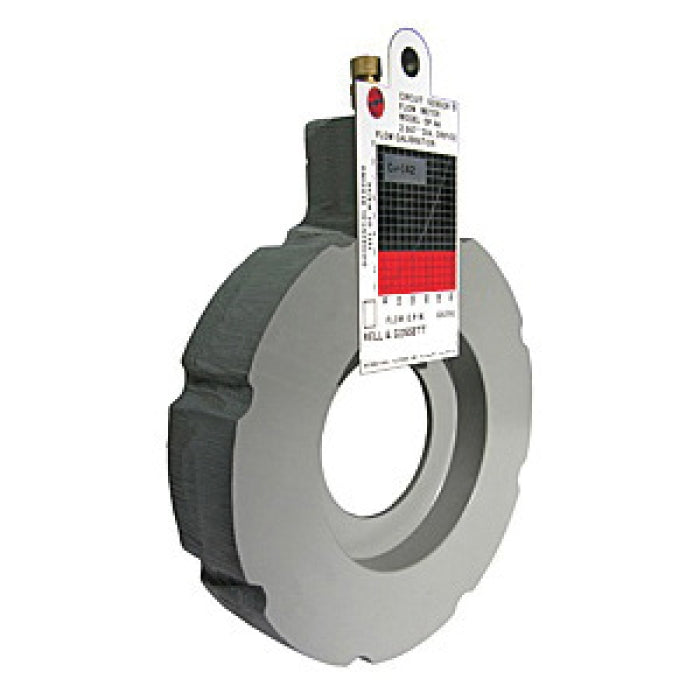

Bell & Gossett 117050 OP 2-1/2A Circuit Sensor Flow Meter 27-80 gpm 300 psi

Product Description

The Bell & Gossett Circuit Sensor Flow Meter, model 117050, is specifically designed to monitor system flow efficiently with minimal friction head loss. It is installed between standard ANSI flanges ranging from 125 to 300 psi.

• Equipped with RV-125A Readout Valves for accurate pressure readings.
• Handles a flow rate from 27 to 80 gpm and pressure up to 300 psi.
• Durable cast iron construction with a temperature tolerance up to 250 degrees Fahrenheit.

Product Highlights

This device is essential for accurate water flow measurement in heating systems, ensuring optimal performance and efficiency.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 117050

Technical Specifications

• Accuracy: +/- 1 %
• Connection Size: 2-1/2 inches
• Dimensions: 5-1/16 in W x 1-1/2 in D
• Flow Rate: 27 to 80 gpm
• Material: Cast Iron
• Pressure Rating: 300 psi
• Temperature Rating: 250 degrees Fahrenheit
• Type: Type A
