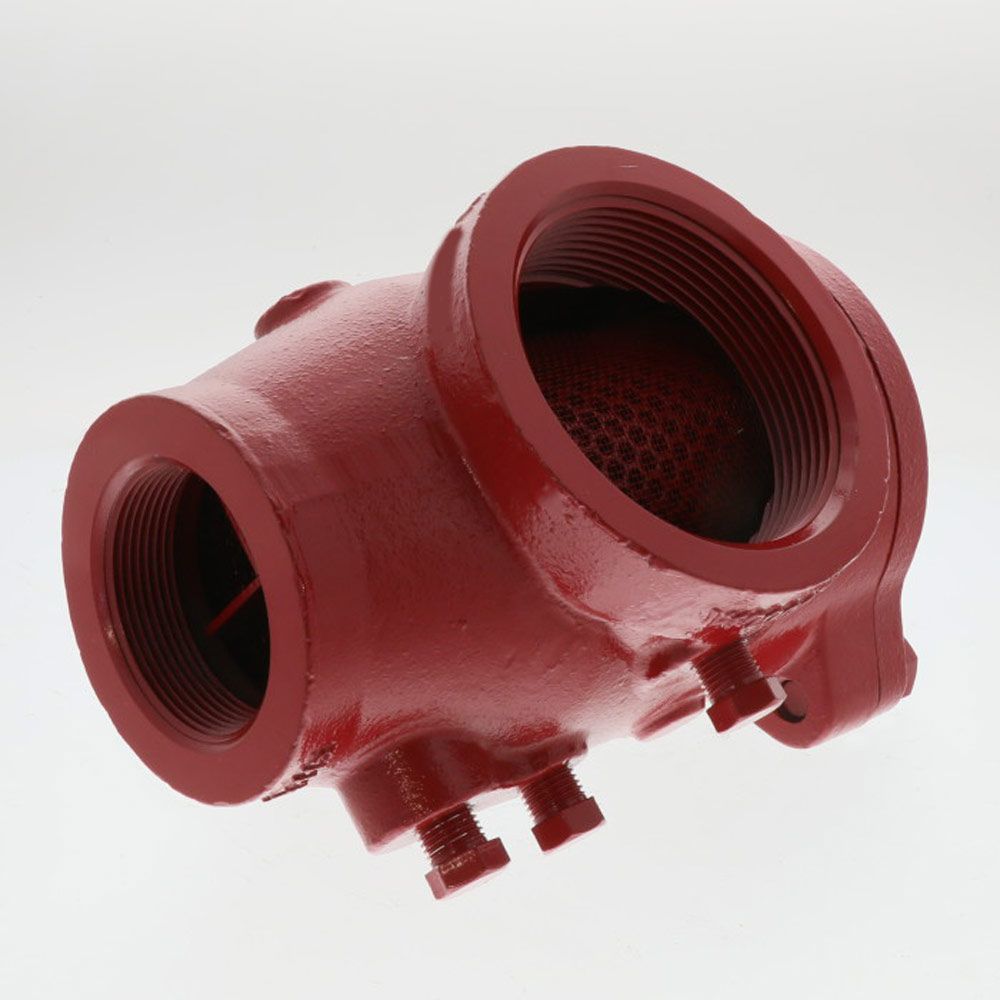

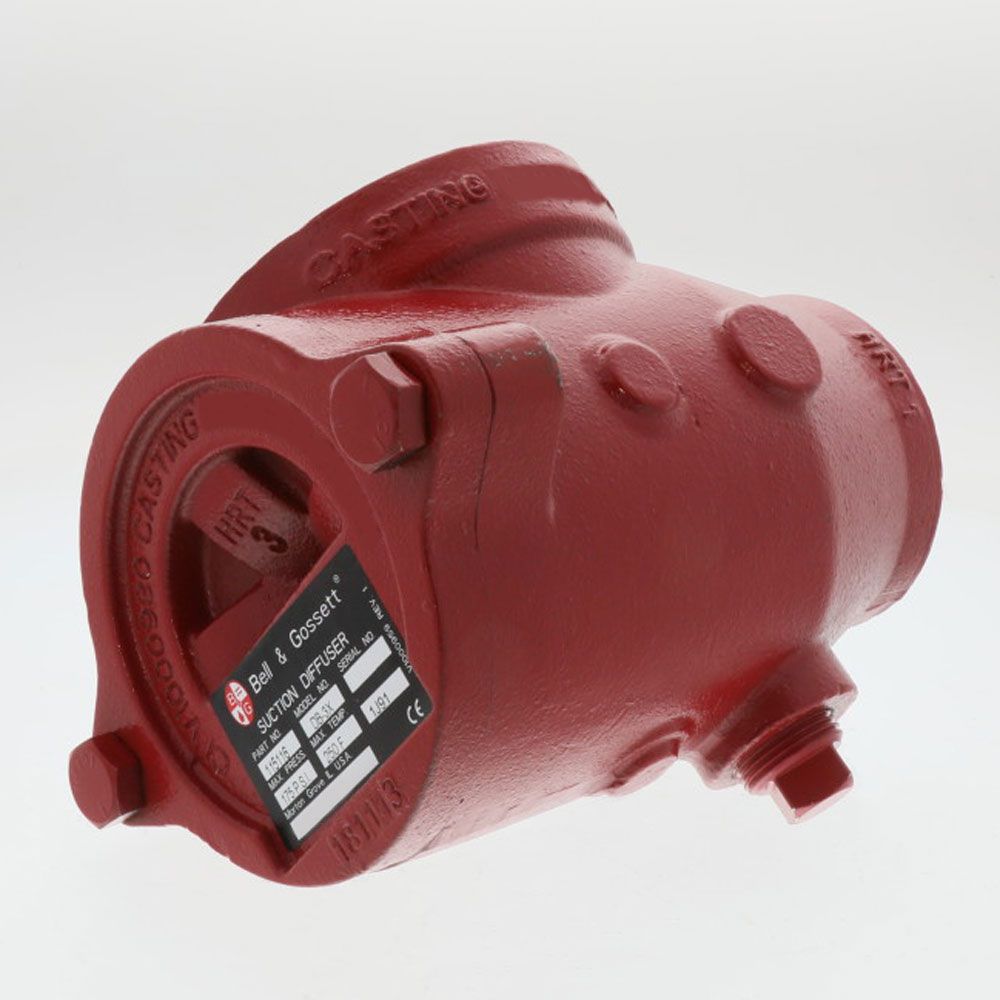

Bell & Gossett 115116 DB-3X Suction Diffuser Plus 3 Inch NPT x 2 Inch NPT

Product Description

The Bell & Gossett DB-3X Suction Diffuser Plus is a robust component designed for managing the inflow in pump systems. Engineered with a 3 inch NPT on the system side and a 2 inch NPT on the pump side, this model, MPN 115116, is built with a cast iron body that ensures durability. Suited for applications requiring a maximum working pressure of 175 psi and temperatures up to 250 degrees Fahrenheit, this suction diffuser integrates seamlessly into various setups.

• Optimizes system efficiency by smoothing inlet flow to the pump.
• Features an EPDM o-ring and a 16 mesh bronze strainer for reliable filtration.
• Designed to save space and simplify pipe configuration around pump areas.

Product Information

Standard Information

• Brand: Bell & Gossett
• Max Working Pressure: 175 psi
• Max Operating Temperature: 250 degrees Fahrenheit

Technical Specifications

• Body Material: Cast Iron
• Connection Type: NPT
• Model: DB-3X
• Product Dimensions: Connection Size 3 inch x 2 inch
• Weight: 17.00 pounds
