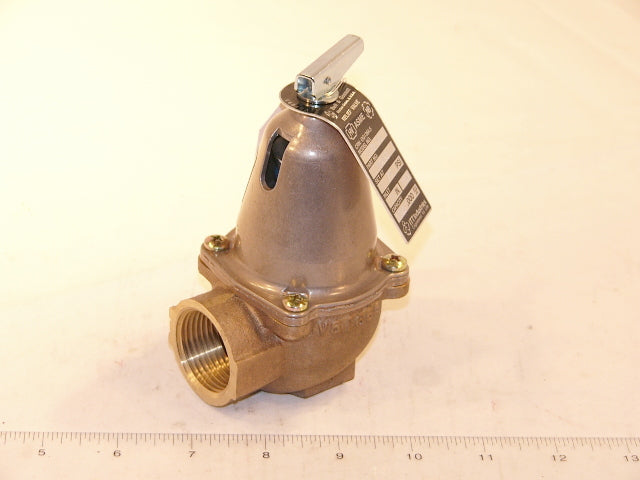

Bell & Gossett 110133 1 Inch Relief Valve 75# 2385000 BTUH

Product Description

Explore the dependable Bell & Gossett 110133, a 1-inch NPT relief valve with a 75 psi pressure rating and 2385000 BTUH capacity. Manufactured by ITT Bell & Gossett, this valve is engineered to protect HVAC and water heating systems from overpressure.

• Robust brass body enhances durability.
• Designed for both fired and unfired hot water pressure vessels.
• Meets requirements of Section IV of the ASME Boiler and Pressure Vessel code.

Product Highlights

The Bell & Gossett 110133 is an angle pattern bronze hot water relief valve, essential for maintaining safe pressure levels in hydraulic systems. It's suited for applications in HVAC systems, residential and commercial heating systems, and industrial processes with high-pressure fluid systems.

Product Information

Standard Information

• End Style: NPT
• Pressure Rating: 75 psig
• Temperature Rating: 250 degrees F

Technical Specifications

• Valve Size: 1 in
• Body Material: Brass
• Trim Material: EPDM
• Dimensions: 2-7/8 in L x 4-15/16 in H
