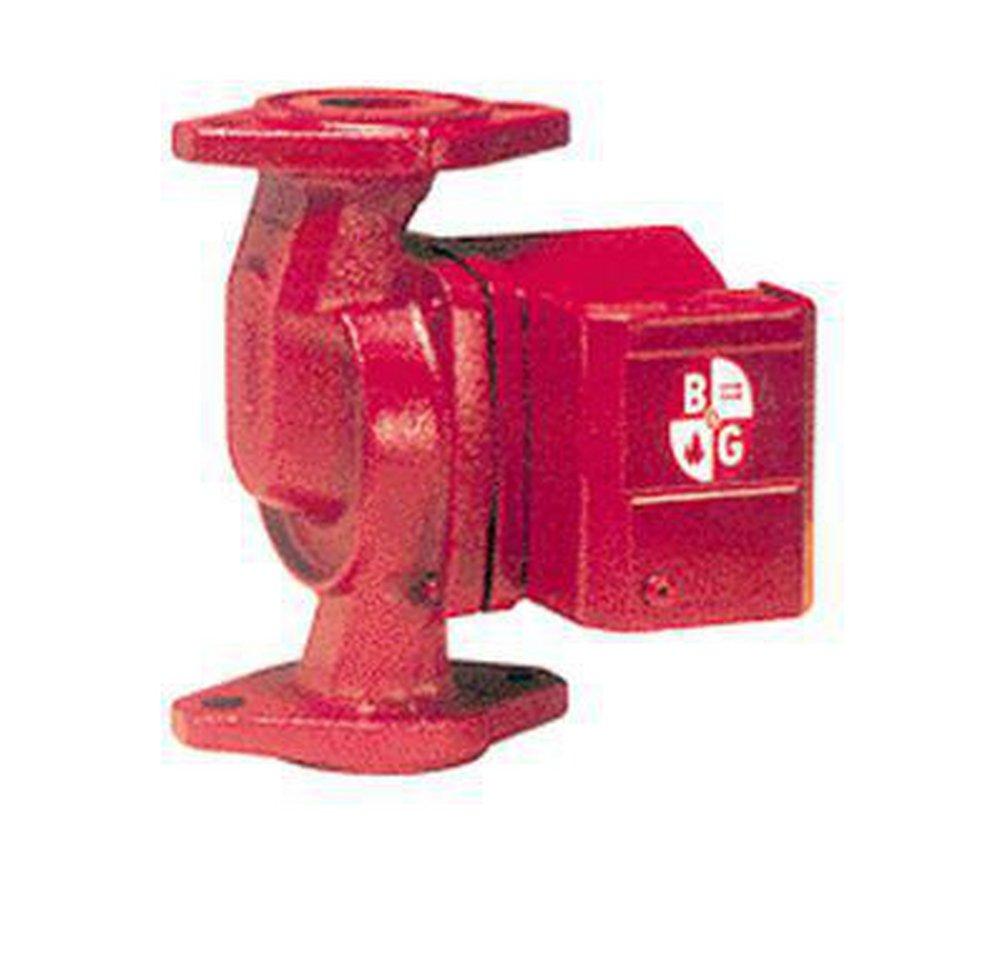

Bell & Gossett 103251 NRF Series 1/25 HP 115V Circulating Booster Pump

Product Description

The Bell & Gossett NRF Series 1/25 HP 115V Circulating Booster Pump, MPN 103251, is designed for effective water circulation in residential and light commercial heating systems. This maintenance-free pump operates quietly in hydronic heating systems, ensuring efficient heat distribution with minimal energy consumption. It features a durable cast iron body, suitable for various heating applications.

• Max operating pressure: 150 psi
• Temperature range: 40 to 240 degrees F
• Self-cleaning particle shield protecting the motor and rotor

Product Highlights

The NRF Series circulator pump provides high efficiency, durability, and ease of installation. With a unique DuraGlide bearing system, it prevents freeze-up and eliminates the need for lubrication.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 103251

Technical Specifications

• Amperage Rating: 0.8 A
• Power Rating: 1/25 HP
• Voltage Rating: 115 VAC
• Max Pressure: 150 psi
• Motor Speed: 2940 rpm
• Dimensions: 6-3/8 in H x 6-3/16 in L
• Impeller Type: Nylon/PPO
• Phase: 1 ph
• Frequency: 60 Hz
