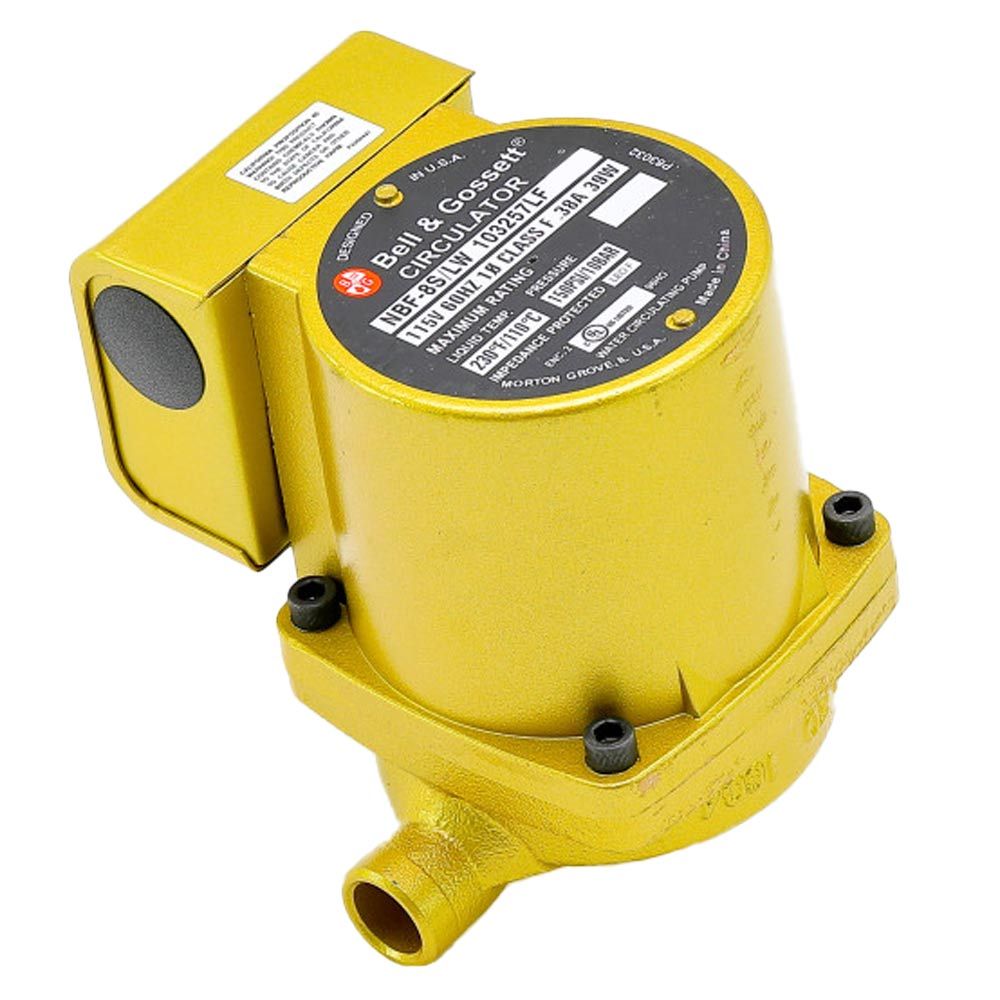

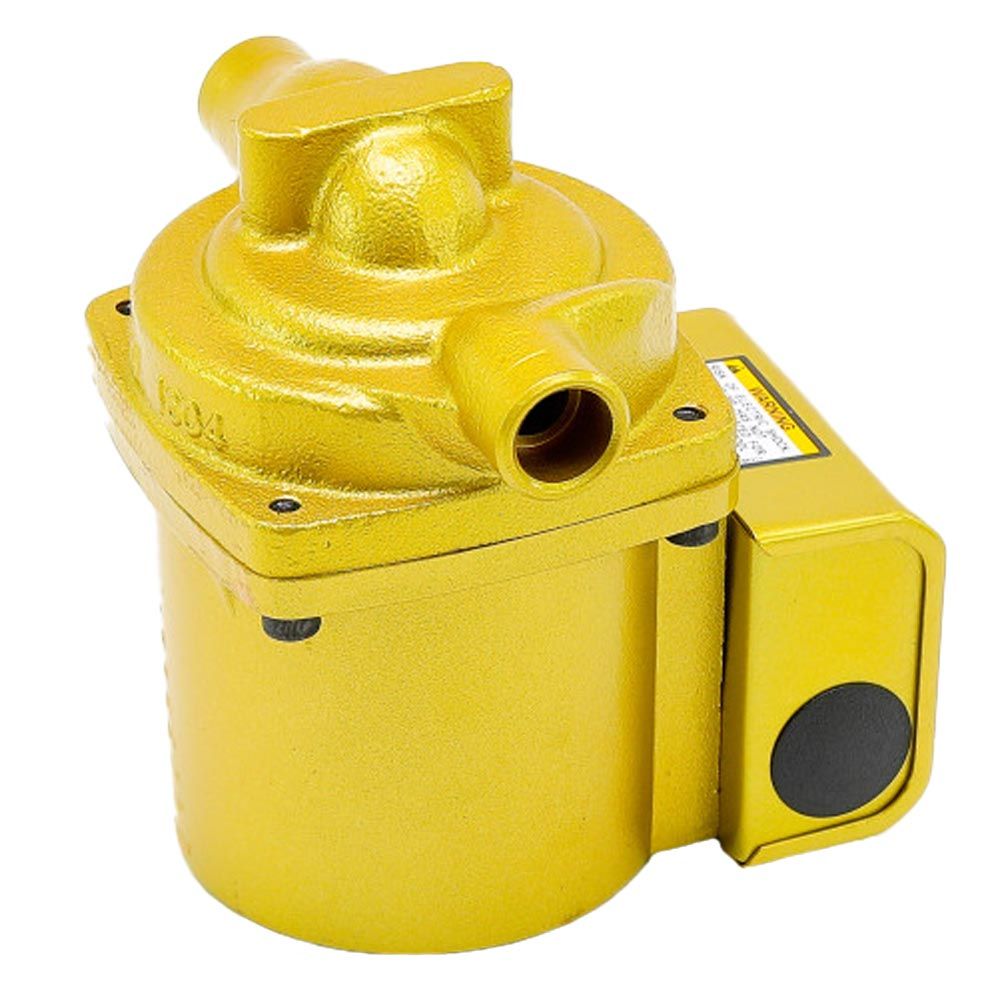

Bell & Gossett 103257LF NBF 8S/LW LF 1/40 HP

Product Description

The Bell & Gossett 103257LF is a reliable wet rotor circulator pump designed for domestic water systems. With a motor rating of 1/40 horsepower, it operates efficiently at 2800 RPM. This pump is suitable for various applications, including hydronic heating systems and potable water circulation. The advanced design includes lead-free bronze construction and a self-cleaning particle shield to enhance long-term performance and service life.

• In-line wet rotor design
• Compatible with 1/2 inch sweat connections
• Max flow rate of 7 gallons per minute

Product Highlights

This circulator pump is designed for quiet operation while pumping potable water. It is built to resist corrosion and ensure a long operational life.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Model: NBF-8S/LW

Technical Specifications

• HP Rating: 1/40 hp
• Voltage Rating: 115 VAC
• Flow Rate: 7 GPM
• Maximum Head: 8 ft
• Motor Speed: 2800 RPM
• Amperage Rating: 0.38 A
• Pressure Rating: 150 psi
• Temperature Rating: 40 - 230 deg F
• Material: Bronze
• Connection Size: 1/2 in Sweat
• Phase: 1 ph
• Frequency Rating: 60 Hz
