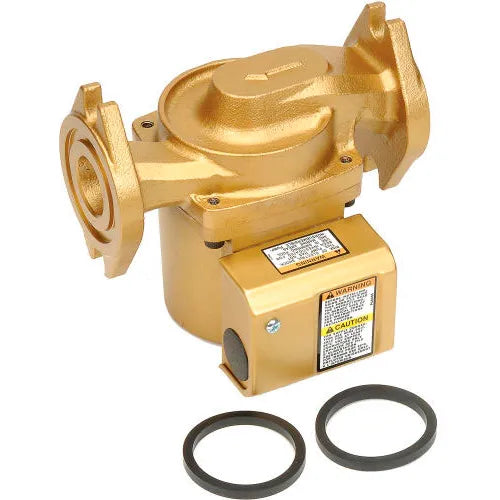

Bell & Gossett 103401LF NBF-36 Bronze Wet Circulator Pump 115V

Product Description

Introducing the Bell & Gossett 103401LF NBF-36, a high-performance bronze wet circulator pump designed for reliable operation in both commercial and residential settings. This circulator pump is engineered to facilitate efficient water circulation, making it an ideal choice for hydronic heating and cooling systems, as well as domestic hot water applications.

• Lead-free bronze construction ensures durability and corrosion resistance.
• Equipped with a powerful 1/6 HP motor operating at 3,200 RPM.
• Three-speed settings provide flexible flow rate adjustments.

Product Highlights

The NBF-36 model features a wet rotor design with no mechanical seals, which reduces maintenance needs and extends the service life of the pump. Its compact size and quiet operation are suited for installation in limited spaces without disrupting the ambient environment.

Product Information

Technical Specifications

• Power Source: 115V, single-phase
• Dimensions: 6-7/8 inches length x 5-3/4 inches width x 6-3/8 inches height
• Flow Capacity: Up to 36 gallons per minute
• Maximum Operating Pressure: 150 psi
• Maximum Operating Temperature:: 225 degrees Fahrenheit
• Connection Type: Flanged
• Compliance: Complies with NSF/ANSI 372 for lead-free construction
• Energy Efficiency: Energy-efficient motor with thermal overload protection.
