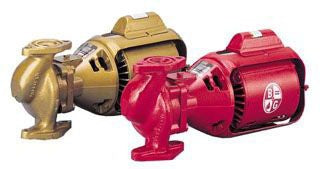

Bell & Gossett 102228LF HD3AB Booster Pump LF

Product Description

The Bell & Gossett 102228LF is a lead-free HD3AB booster pump designed for high flow and head pressures. This pump features a three-part configuration that allows for easy repairs and maintenance. It operates efficiently at 115/230 volts and delivers significant performance for various applications.

• Compact three-part design for easy servicing
• Maximum flow rate of 150 gallons per minute
• Equipped with a durable motor for reliable operation

Product Highlights

The HD3AB series booster pumps from Bell & Gossett are ideal for heating, cooling, and pressure boosting applications. These pumps support efficient operation with a power rating of one-third horsepower and a maximum pressure of 125 psi.

Product Information

Standard Information

• Product Name: HD3AB Booster Pump LF
• Manufacturer: Bell & Gossett

Technical Specifications

• Power Rating: 1/3 hp
• Voltage Rating: 115/230 V
• Frequency Rating: 60 Hz
• Maximum Pressure: 125 psi
• Dimensions: 12 inches length x 19.5 inches width x 9 inches height
• Weight: 61 pounds
• Temperature Rating: 225 degrees F
• Motor Speed: 1725 rpm
