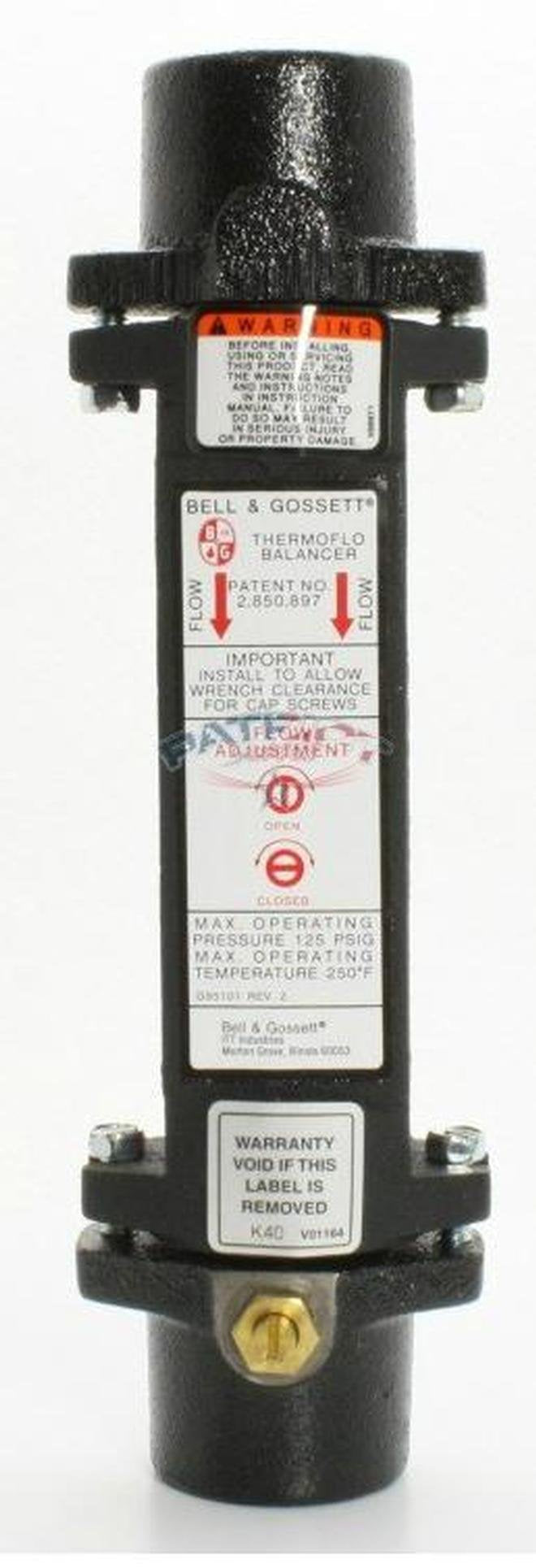

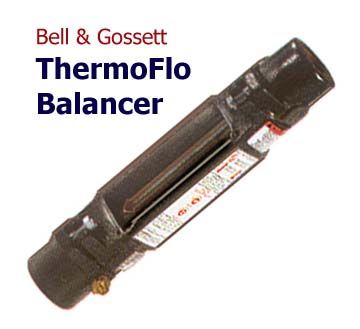

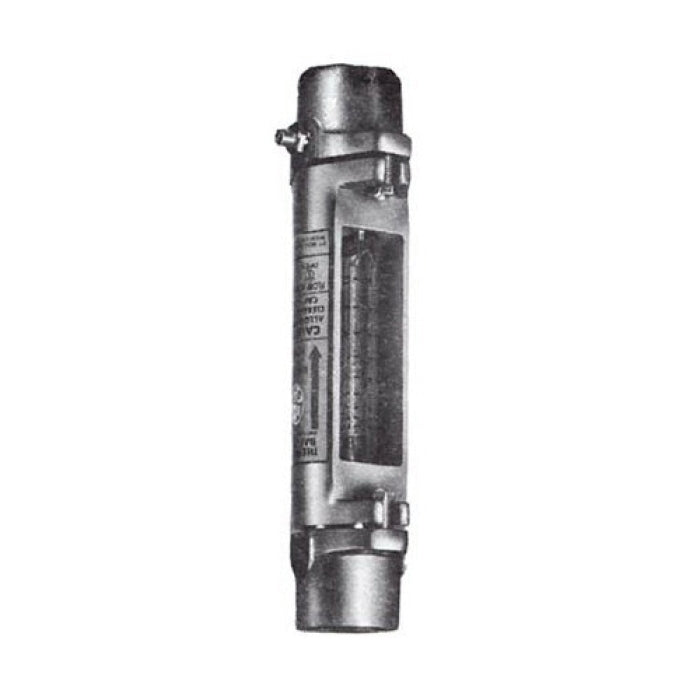

Bell & Gossett 127002 TB-1 Thermoflo Balancer - Visual Indication of Hydronic System Balance

Product Description

The Bell & Gossett TB-1 Thermoflo Balancer, model 127002, is an essential device designed to visually indicate the balance within hydronic heating systems. It is particularly useful in maintaining even water distribution within both hot and cold water lines. The balancer operates effectively within a flow range of 2 to 10 gallons per minute (GPM) and can handle maximum pressure up to 125 psi and temperatures up to 250 degrees Fahrenheit.

• Visual flow indication simplifies the balancing process.
• Dual scale calibrated in both gallons and liters for precise measurement.
• Robust cast iron construction with a borosilicate glass scale for durability.

Product Highlights

Equipped with a cast iron body and a stainless steel indicating device, this product is built to last. It promotes efficient flow management and is ideal for installation in various commercial systems requiring precise water flow regulation.

Technical Specifications

• Flow Rate: 2 to 10 GPM
• Max Pressure: 125 psi
• Max Temperature: 250 degrees Fahrenheit
• Connection: 1 inch FNPT
• Material: Cast Iron
• Indicating Device: Stainless Steel
• Scale: Borosilicate Glass
