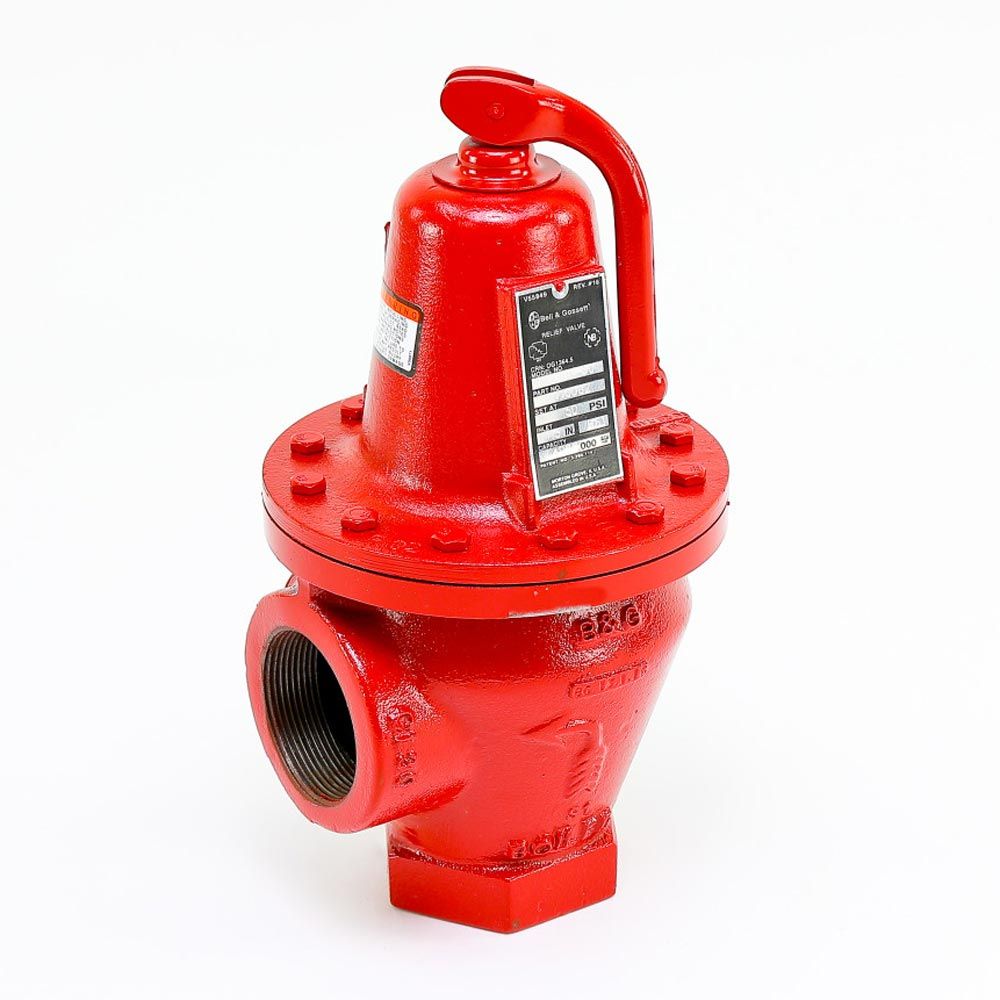

Bell & Gossett 110082 ASME Safety Relief Valve Cast Iron 1-1/2 inch NPT 4,900,000 BTU/hr

Product Description

The Bell & Gossett 110082 cast iron safety relief valve is designed to ensure boiler safety and prevent over-pressurization conditions in hot water systems. This ASME-certified valve features a 1-1/2 inch NPT inlet and a 2 inch outlet, capable of handling up to 4,900,000 BTU/hr.

• ASME certified for boiler safety
• Cast iron construction ensures durability under high temperatures
• Adjustable set pressure of up to 50 psi

Product Highlights

Engineered for both fired and unfired hot water pressure vessels, this relief valve is suitable for use with heating boilers and large water heating systems. Its robust design allows for reliable operation at temperatures up to 250 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 110082

Technical Specifications

• Material: Cast Iron
• Connection Type: Threaded
• Pressure Capacity: 4900000 BTU/hr
• Max. Working Pressure: 50 PSI
• Temperature Range: Up to 250°F
