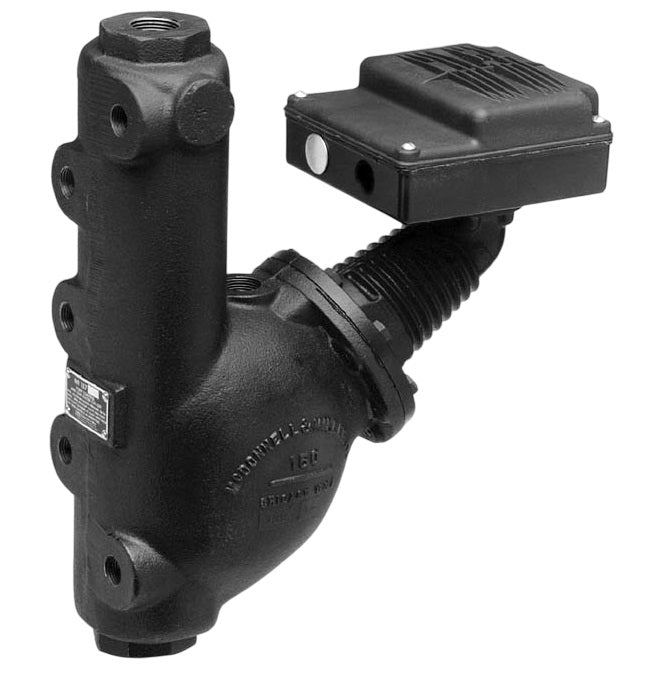

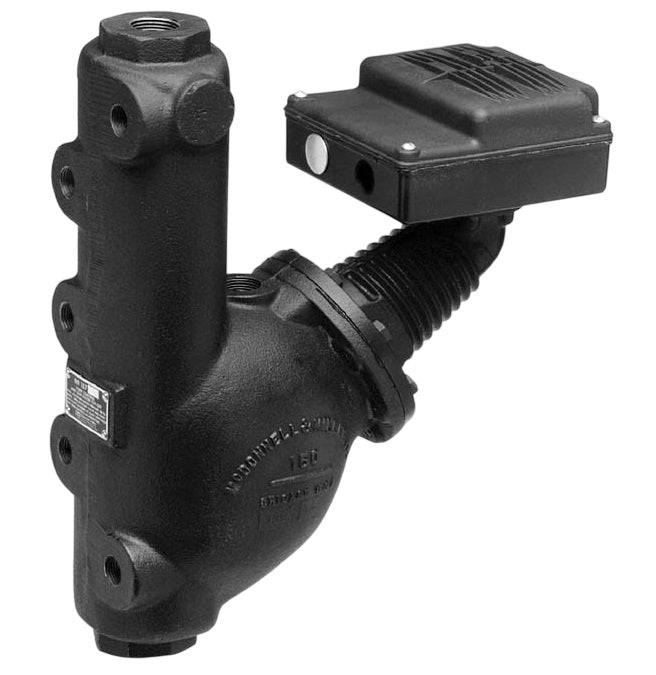

Xylem 173502 combination low water cut-off and pump controller with snap acting SPDT switch 150W 1 in 157S

Product Description

The XYLEM 173502 is a combination low water cut-off and pump controller featuring a snap acting SPDT switch. Designed for commercial and industrial low or high pressure boiler applications, it ensures boiler protection by shutting down the system upon detecting low water levels. This unit utilizes a screwed connection type and Monel bellows for superior corrosion resistance. Snap action switches are suitable for high temperature service, including one SPST switch for pump control and one SPDT switch for low water cut-off and alarm actuation. It handles a maximum pressure of 150 PSI.

• Low water cut-off and pump controller with snap acting SPDT switch.
• Screwed connection type and Monel bellows for corrosion resistance.
• Suitable for commercial and industrial low or high pressure boiler applications.

Product Highlights

Protects boilers by shutting down the system at low water levels, featuring a snap acting SPDT switch and Monel bellows for durability in commercial and industrial applications.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 173502
• Country of Origin: United States

Technical Specifications

• Connection Type: screwed
• Applications: Commercial and industrial low or high pressure boiler
• Corrosion Resistance: Monel bellows
• Switch Type: Snap action for high temperature service
• Pump Control Switch: 1 Single pole, single throw
• Low Water Cut-Off & Alarm Switch: 1 Single pole, double throw
• Pressure Rating: 150 PSI
• MPN: 173502
• Series: 157S
• Amperage Rating: 7.4 A at 120 V and 3.7 A at 240 V Full Load, 44.4 A at 120 V and 22.2 A at 240 V Load Locked
• Size: 1 in
• Type: Mechanical
• VA Rating: 345 VA Pilot-Duty
• Voltage Rating: 120/240 VAC
• Reset Type: Automatic
• Power Output: 150W
