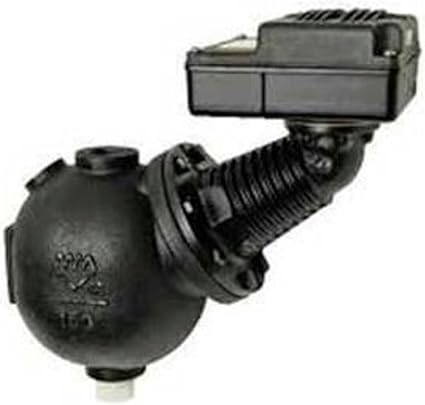

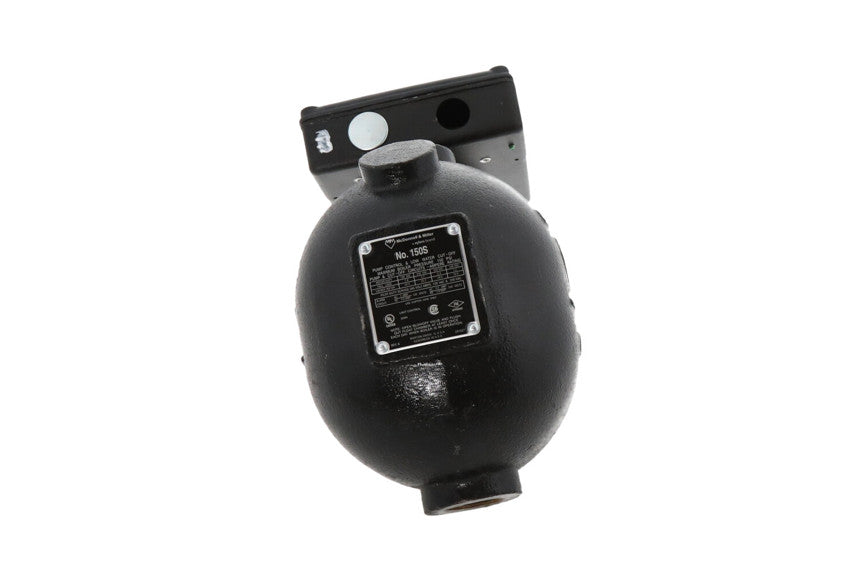

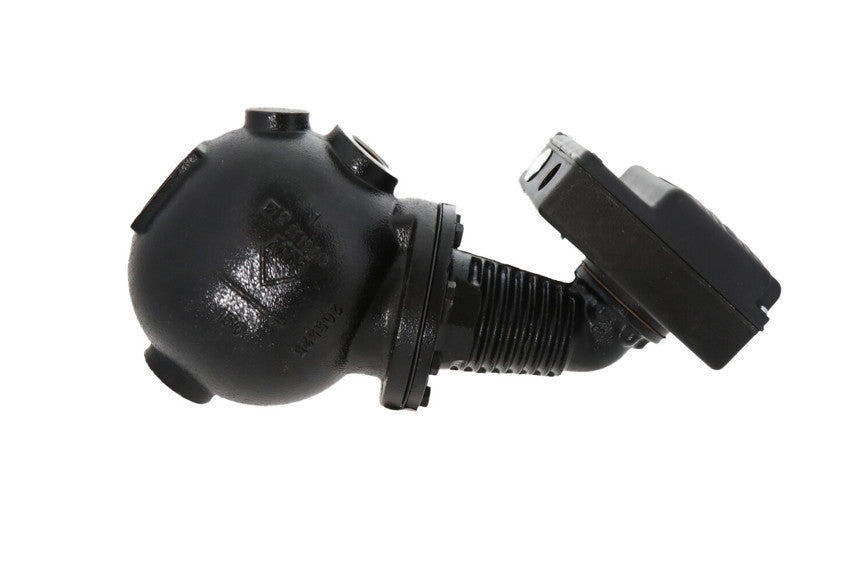

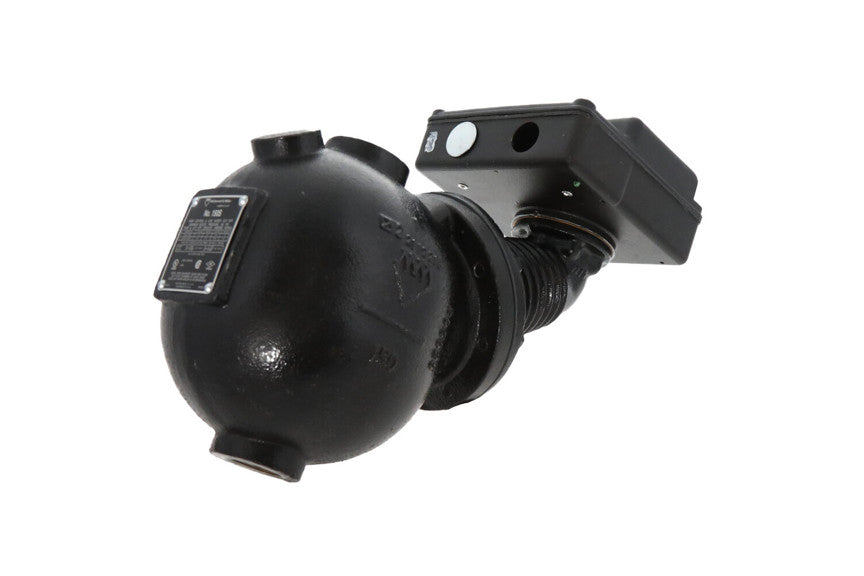

Xylem 171702 150S pump control & LWCO McDonnell & Miller 120/240 volt 1 inch replaces 171700 171600

Product Description

The Xylem 171702 is a combination float type low water cutoff and pump controller designed for steam boilers with a separate water column. This unit features automatic reset functionality and includes two 120 volt bi-metal snap switches. One single pole, single throw switch manages pump control, while another single pole, double throw switch handles low water cut-off and alarm actuation. It is suitable for commercial and industrial low or high-pressure steam boiler applications.

• Combination float type low water cutoff and pump controller
• Automatic reset functionality for reliable operation
• Equipped with two 120 volt bi-metal snap switches

Product Highlights

Float-type low water cutoff and pump controller with automatic reset, 150 psi maximum pressure, and corrosion-resistant Monel bellows.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 171702
• Country of Origin: USA

Technical Specifications

• Manufacturer: Xylem Inc
• Brand: McDonnell & Miller
• MPN: 171702
• Model: 150S
• Series: Series 150S
• Max Pressure: 150 psi
• Connection Type: NPT
• Connection Size: 1 inch
• Reset Type: Automatic
• Input Voltage: 120V, 240V
• Application: Steam Boilers
• Control Switch: SWA-150S
• Installation Method: 1" Equalizing Piping
• Replaces: 171700 (Model 150), 171600 (Model 150E)
• Power Rating: 345 VA
• Type: Mechanical
• Bellows Material: Monel
• Switch Type: Snap action SPDT
• Pump Control Switch: 1 Single pole, single throw
• Low Water Cut-Off/Alarm Switch: 1 Single pole, double throw
