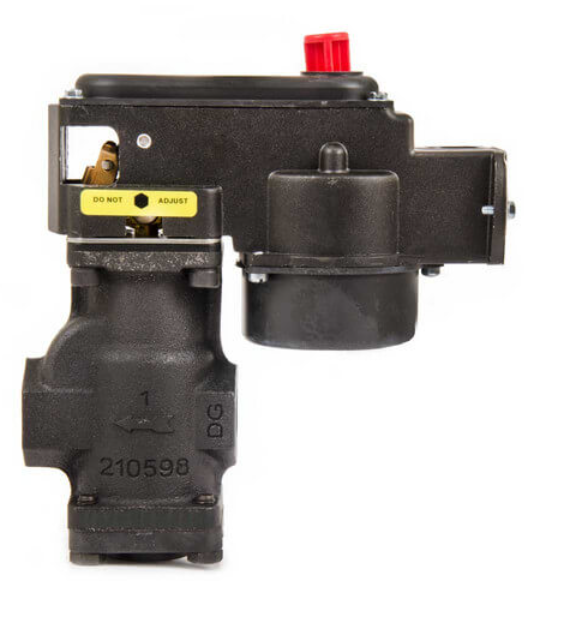

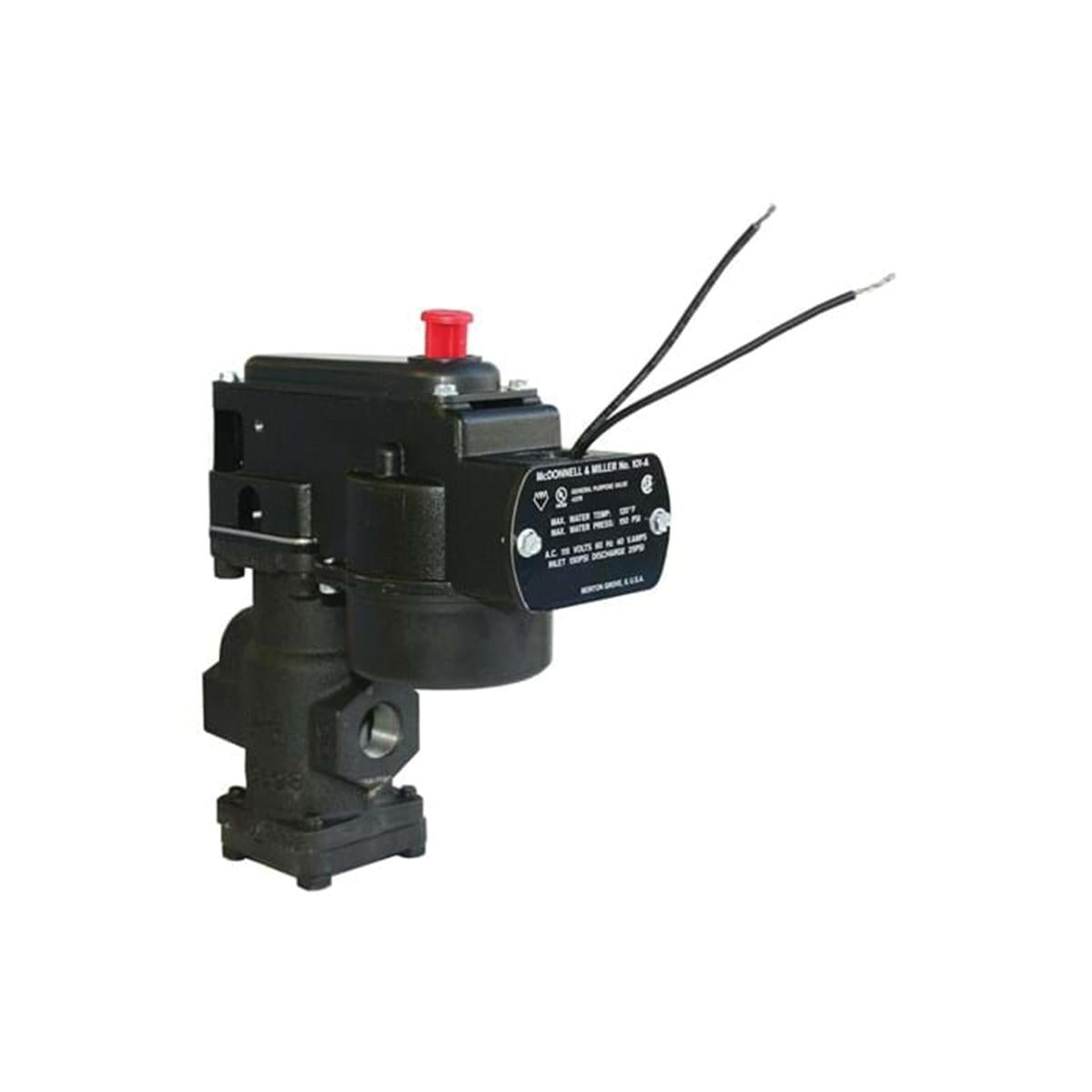

Xylem 169400 Series 101-A Electric Water Feeder 120V 150 psi

Product Description

The XYLEM 169400 Series 101-A Electric Water Feeder is designed for low pressure steam boilers with cold water feed, eliminating the need for manual water addition. This 120V unit automatically maintains suitable water levels, protecting boilers from damage and dry-firing incidents. It can be used with mechanical or electronic low water cut-off controls, ensuring operational stability in residential and commercial HVAC steam heating systems. It features a quick-change replaceable cartridge valve and strainer, and a manual feed button.

• For low pressure steam boilers with cold water feed
• Eliminates necessity to manually add water to the boiler
• Can be used with mechanical or electronic low water cut-off controls

Product Highlights

Automatic water level maintenance for steam boilers, featuring a 120V solenoid and manual feed button.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 169400
• Country of Origin: USA

Technical Specifications

• Power Consumption: 40 VA at 24 VAC- 40 VA at 120 VAC
• Product Type: Electric Water Feeders For Steam Bolilers
• Application: Low Pressure Steam Boilers With Cold Water Feed
• Maximum Boiler Pressure: 25 psi
• Maximum Water Supply Pressure: 150 psi
• Series: 101-A
• Maximum Inlet Water Temperature: 120° F (49° C)
• Manufacturer: Xylem-McDonnell & Miller
• Model Number: 101A-120V
• OEM Part Number: 101A-120V
• Input Voltage: 120 volt
• Boiler Output: 2350000 Btu/hr
• Connection Size: 1/2 in
• Connection Type: NPT
• Flow Rate: 1.4 to 4 gpm
• Item Number: MCM101A120
