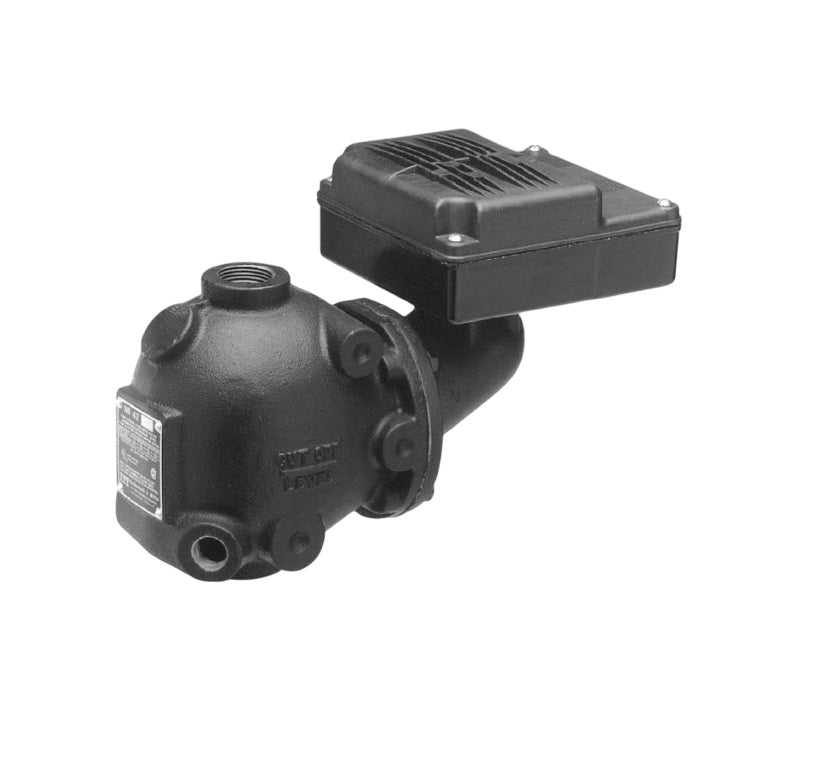

Xylem 129302 Combination Low Water Cut Off and Pump Controller with SPST Snap Action Switches 120 Volt 1 Inch FIP Connection

Product Description

The XYLEM 129302 is a combination low water cut-off and pump controller designed for steam boilers. This essential safety device prevents HVAC equipment damage from low water levels by automatically turning off the burner. It features SPST snap action switches and an automatic reset function, ensuring quick recovery. The unit is suitable for steam boilers with a separate water column and has a maximum pressure of 50 psi, with a 1 inch FIP connection.

• Functions as a Combination Low Water Cut Off and Pump Controller.
• Equipped with SPST Snap Action Switches and automatic reset.
• Designed for steam boilers, preventing equipment damage from low water levels.

Product Highlights

Combination low water cut-off and pump controller with SPST snap action switches for steam boilers, featuring automatic reset and 50 psi maximum pressure.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 129302

Technical Specifications

• Brand: Xylem-McDonnell & Miller
• Model: 42S
• MPN: 129302
• Product Type: Combination Low Water Cut Off and Pump Controller
• Switch Type: SPST Snap Action
• Application: Steam Boilers
• Series: 42S
• Control Switch: SWA-42S
• Control Reset: Automatic
• Voltage: 120V, 240V
• Connection Size: 1 inch
• Control Connection: NPT
• Max Pressure: 50 psi
• Installation Method: 1 inch Equalizing Piping
