Xylem 120601 FS8-W 1in NPT flow switch NEMA 4 encl McDonnell & Miller

Product Description

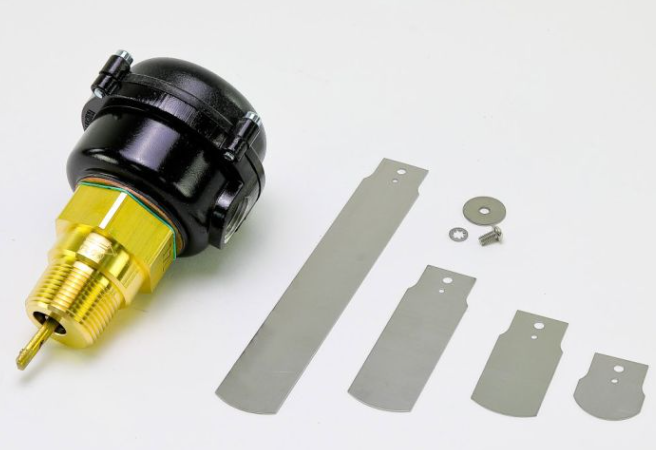

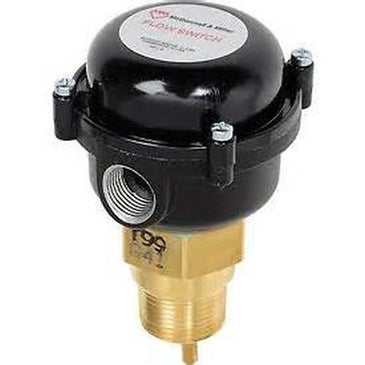

The Xylem 120601 is a McDonnell & Miller liquid flow switch, suitable for general purpose applications and environmental exposure. Featuring a NEMA 4 rated enclosure, it provides water-tight and dust-tight protection. This 1-inch NPT flow switch incorporates a sealed Monel bellows and a single pole, double throw snap switch. It includes four stainless steel paddles (1", 2", 3", and 6") and allows for easy flow adjustment. Operating temperatures range from 32°F to 225°F, with a maximum operating pressure of 160 psi.

• NEMA 4 rated enclosure provides water-tight and dust-tight protection for environmental exposure.
• Features a 1-inch NPT connection with a sealed Monel bellows for reliable operation.
• Includes four stainless steel paddles (1", 2", 3", 6") and a single pole, double throw snap switch.

Product Highlights

General purpose liquid flow switch with NEMA 4 enclosure, 1-inch NPT connection, and adjustable sensitivity.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 120601
• Country of Origin: United States

Technical Specifications

• Brand: Xylem
• MPN: 120601
• Model: FS8-W
• Application: Liquid Flow
• Enclosure Rating: NEMA 4X
• Connection Size: 1" NPT
• Bellows Material: Monel
• Switch Type: SPDT (Single-Pole, Double-Throw)
• Paddles Included: Four stainless steel (1", 2", 3", 6")
• Minimum Fluid Temperature: 32°F (0°C)
• Maximum Fluid Temperature: 225°F (107°C)
• Maximum Operating Pressure: 160 psi (11.3 kg/cm2)
• Voltage: 120V, 240V
• Maximum Velocity: 6.53 ft/sec
• Country of Origin: United States
• Minimum Flow Rate: 4.9 GPM
• Maximum Flow Rate: 17.6 GPM
• Spring Force: 120#
• Certifications: UL, CSA
