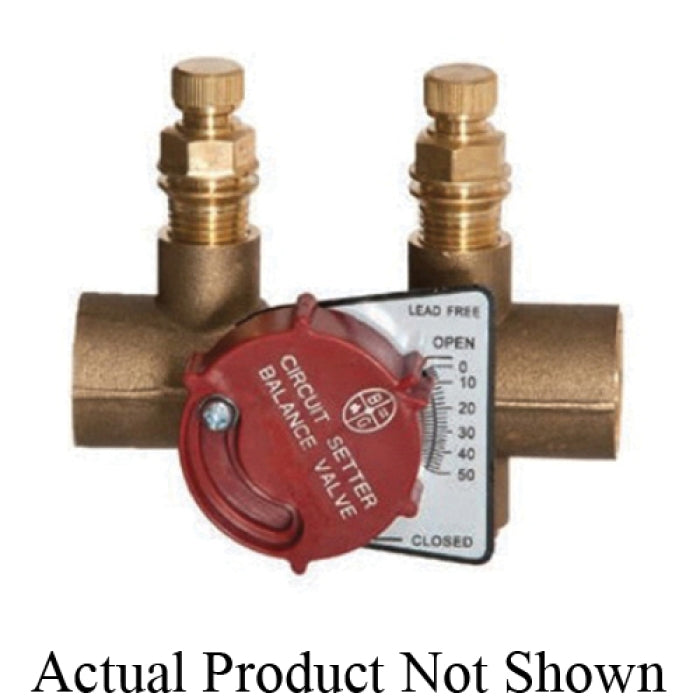

Bell & Gossett 117412LF CB-1/2S Circuit Setter Plus Balancing Valve Sweat Connections

Product Description

Enhance the efficiency of your HVAC or potable water systems with the Bell & Gossett 117412LF CB-1/2S Circuit Setter Plus. This lead-free balancing valve, designed for half-inch sweat connections, offers a calibrated balance between flow control and system pressure.

• Lead-free certified, offering safe installation.
• Capable of handling up to 300 psi with a temperature tolerance of -4 to 250 degrees Fahrenheit.
• Bi-directional flow design allows versatile installation configurations.

Product Highlights

The Bell & Gossett 117412LF valve is a precision device that acts as a presettable balance valve, a variable orifice flow meter, and a positive shut-off service valve. It features a memory stop indicator for consistent flow settings, and internally sealed readout valves to prevent leakage.

Product Information

Standard Information

• Item Name: Calibrated Balance Valve
• Material: Brass with EPDM O-ring

Technical Specifications

• Connection Type: Sweat
• Pressure Rating: 300 psi
• Temperature Rating: -4 to 250 degrees Fahrenheit
• Dimensions: 2.91 inches L x 1.82 inches W x 2.85 inches H
