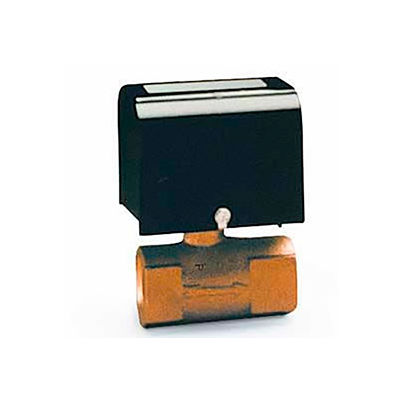

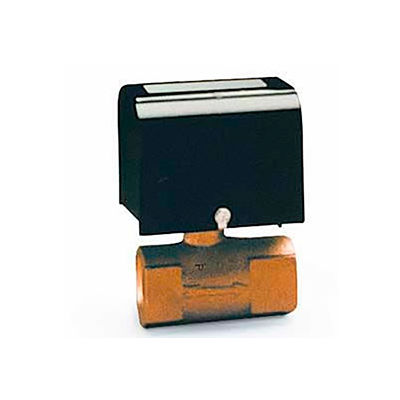

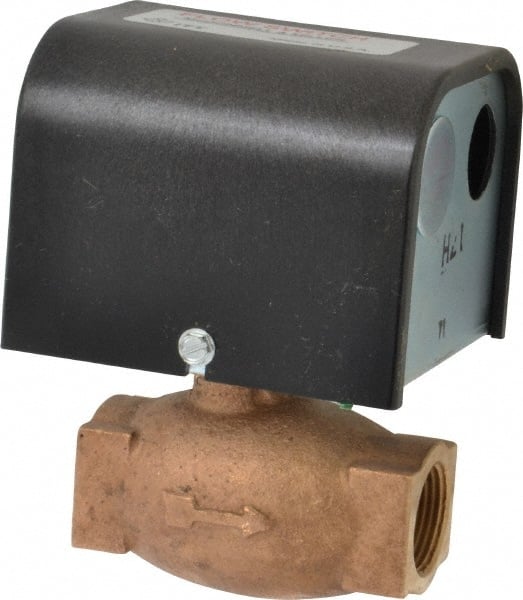

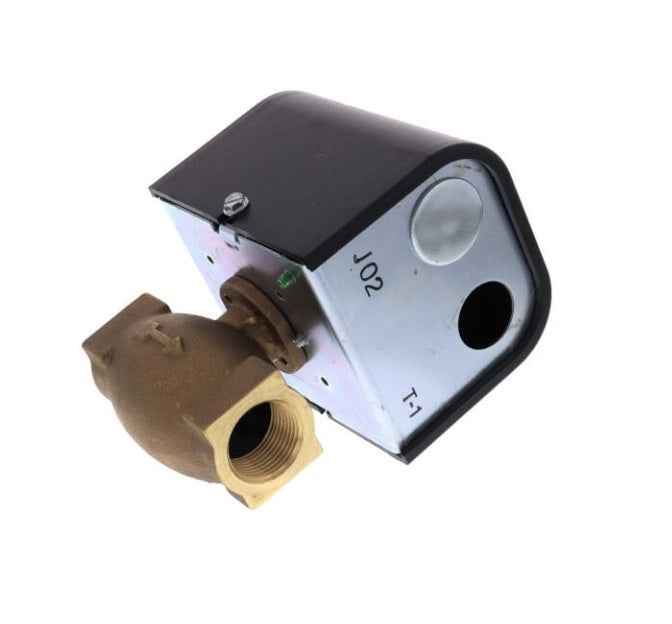

Xylem 114760 general purpose flow switch 120/240v ac 3/4 inch npt

Product Description

The XYLEM 114760 is a general purpose flow switch designed for monitoring liquid flow in various systems. It features a brass housing and a 3/4 inch NPT connection, suitable for applications with a flow range of 1.5 to 15 GPM. Operating at 120/240V AC, this switch has a 150 PSI pressure rating and a NEMA1 enclosure. It is equipped with snap-action SPDT contacts and can operate between 32°F and 250°F.

• General purpose flow switch with brass housing and 150 PSI pressure rating.
• Operates at 120/240V AC with a flow range of 1.5 to 15 GPM.
• Features a 3/4 inch NPT connection and NEMA1 enclosure.

Product Highlights

Monitors liquid flow in systems, protecting against damage and ensuring consistent performance in applications like HVAC.

Product Information

Standard Information

• Brand: XYLEM
• Manufacturer Part Number: 114760

Technical Specifications

• Part Number: 114760
• Category: Sensors & Switches
• Subcategory: Flow Switch
• Pressure Rating: 150 PSI
• Housing Material: Brass
• Flow Set Point: 1.5 GPM
• Flow Range: 1.5 to 15 GPM
• Connection Size: 3/4 NPT
• Current Rating: 7.4 Amp at 120 Volt AC, 3.7 Amp at 240 Volt AC
• Max Flow: 16.6 GPM
• No Flow Range: 1.1 GPM - 10 GPM
• Enclosure Rating: NEMA1
• Switch Type: Single Pole Double Throw - Snap Switch
• Min Operating Temperature: 32 F
• Max Operating Temperature: 250 F
• Applicable Standard: UL, CSA
• Model: FS5-3/4
• Application: Liquid Flow
• Input Voltage: 120/240 Volt AC, 50/60 Hertz
• Max Velocity: 10 ft/sec
