Bell & Gossett 110034 Safety Relief Valve 30 psi 2 in Replacement MPN

Product Description

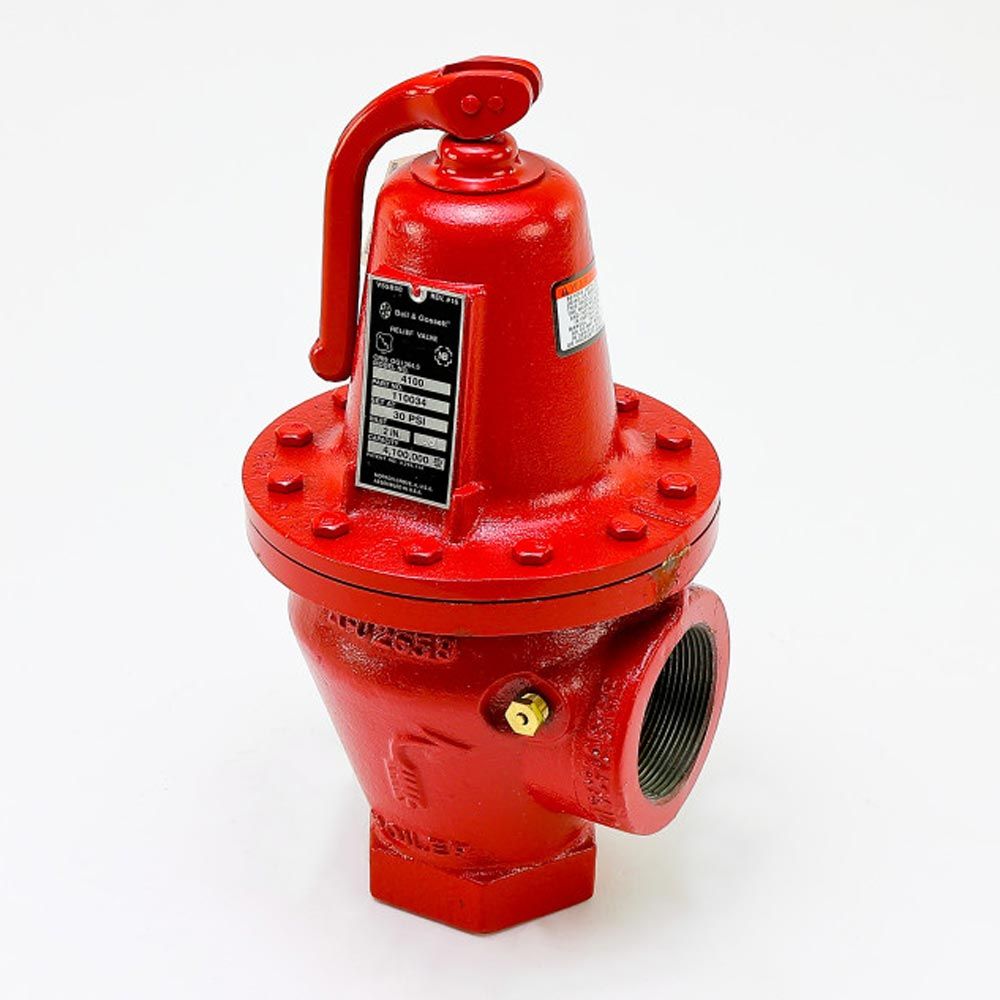

Bell & Gossett 110034 is a safety relief valve designed for protection against overpressure conditions in hot water pressure vessels. Constructed primarily of cast iron, this valve features a diaphragm-operated design that enhances safety and reliability. The valve operates at a relief setting of 30 psi and is suitable for handling capacities up to four million BTU per hour.

• Designed for hot water heating boilers
• End style is NPT
• Maximum temperature rating of 250 degrees Fahrenheit

Product Highlights

This safety relief valve is engineered to meet ASME requirements. It provides essential protection for fired and unfired hot water systems and helps maintain safe operational pressure levels.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Body Material: Cast Iron
• Dimensions: 6 inches (length) x 11 inches (height)
• End Style: NPT
• Nominal Size: 2 inches
• Pressure Rating: 50 psig
• Temperature Rating: 250 degrees Fahrenheit
• Trim Material: EPDM
• Weight: 16.31 pounds
