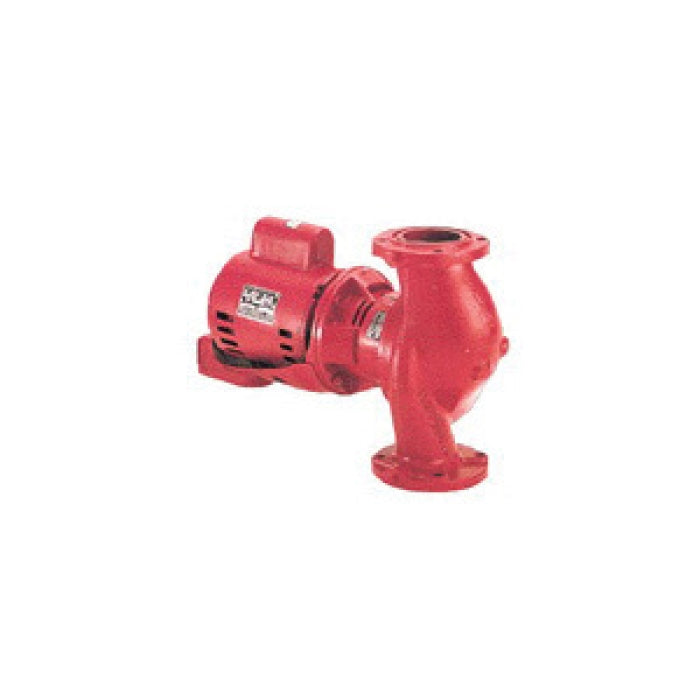

Bell & Gossett 102230 HV Series Iron Circulator Pump 1/6HP 115V

Product Description

The Bell & Gossett 102230 Iron Circulator Pump is a premium solution for boosting HVAC system efficiency and fluid circulation. This reliable 1/6 horsepower pump operates on 115 volts, making it ideal for residential and light commercial applications.

• Maximum pressure of 125 psi ensures adequate flow in various system configurations.
• Designed for durability with an iron pump body and a motor speed of 1725 rpm.
• Operates efficiently within a temperature range up to 225 degrees Fahrenheit.

Product Highlights

This Bell & Gossett circulator pump is designed for long-lasting performance, featuring a robust motor manufactured specially by Bell & Gossett. Suitable for various applications including HVAC systems, the pump supports frequent and continuous use.

Product Information

Standard Information

• Model: HV Series
• Type: 3-Piece, facilitating easy maintenance and repairs

Technical Specifications

• Dimensions: 15-3/8 inches length
• Frequency Rating: 60 Hz
• Maximum Pressure: 125 psi
• Motor Speed: 1725 rpm
• Phase: 1 ph
• Power Rating: 1/6 hp
• Voltage Rating: 115 V
• Temperature Rating: 225 degrees Fahrenheit
