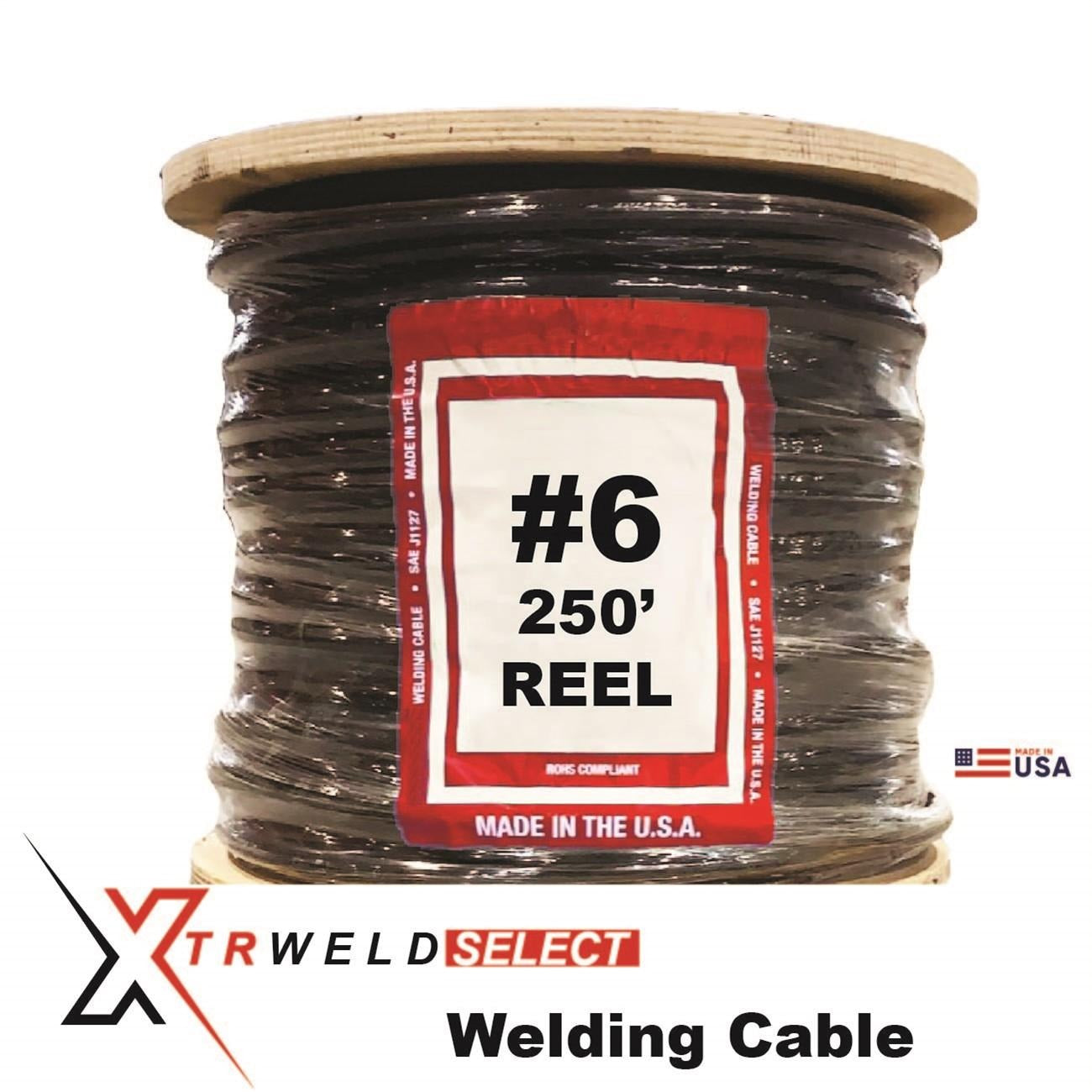

Xtrweld WCSN6B-250 Welding Cable 6 Awg 250 Ft 600V

Product Description

The XTRWELD WCSN6B-250 is a 250-foot reel of 6 AWG SELECT series welding cable rated at 600 volts and designed for high-flex, high-demand welding applications. The conductor uses a rope-lay, bunch-stranded construction with a paper separator, which allows tight bending and repeated flexing without conductor fatigue. The outer jacket is a low-smoke halogen-free (LSHF) EPDM compound that resists abrasion, cutting, and chemical exposure. Rated at 100 amps at 50 feet, this cable is well-suited for welders, maintenance electricians, and industrial tradespeople who need a reliable, code-compliant conductor for welding leads and portable power assemblies. Manufactured in the USA and compliant with SAE J1127 and RoHS standards.

This cable is used in stingers and whips, welding lead assemblies, and ground clamp connections. It also serves battery-related applications including charger wiring and wire harnesses. The LSHF EPDM jacket performs in environments where exposure to oils, moisture, and physical abrasion is common, such as fabrication shops, field welding sites, and industrial maintenance settings. The 250-foot reel length allows technicians to cut custom lengths for multiple drops or full-run installations without excessive waste.

Key Features

• Rope-lay, bunch-stranded conductor construction provides superior flexibility for tight bends and repeated movement
• LSHF EPDM abrasion-resistant jacket reduces smoke and halogen emissions in the event of heat or flame exposure
• Rated 600 volts with 100-amp capacity at 50 feet for welding lead and ground clamp service
• Paper separator between conductor and jacket aids in clean, consistent terminations
• SAE J1127 and RoHS compliant - meets industry standards for welding cable in the USA
• Manufactured in the USA and sold per foot off a 250-foot reel

Compatibility

Suitable for use in stingers, whips, welding leads, and ground clamp assemblies, as well as battery charger wiring and wire harness applications requiring 6 AWG, 600-volt-rated flexible cable.

Installation Notes

Installation should be performed by a qualified electrician or certified welding technician in accordance with applicable NEC guidelines for flexible welding cable. De-energize and lock out all equipment before connecting or disconnecting cable ends. Inspect the jacket for cuts or abrasion before each use, and do not operate the cable coiled tightly, as this can cause excessive heat buildup at rated amperage. Use appropriately rated lugs and connectors rated for the conductor size and application current.
