Xtrweld WCSN1B-25CL Welding Cable 600V 1 Awg 25 Ft

Product Description

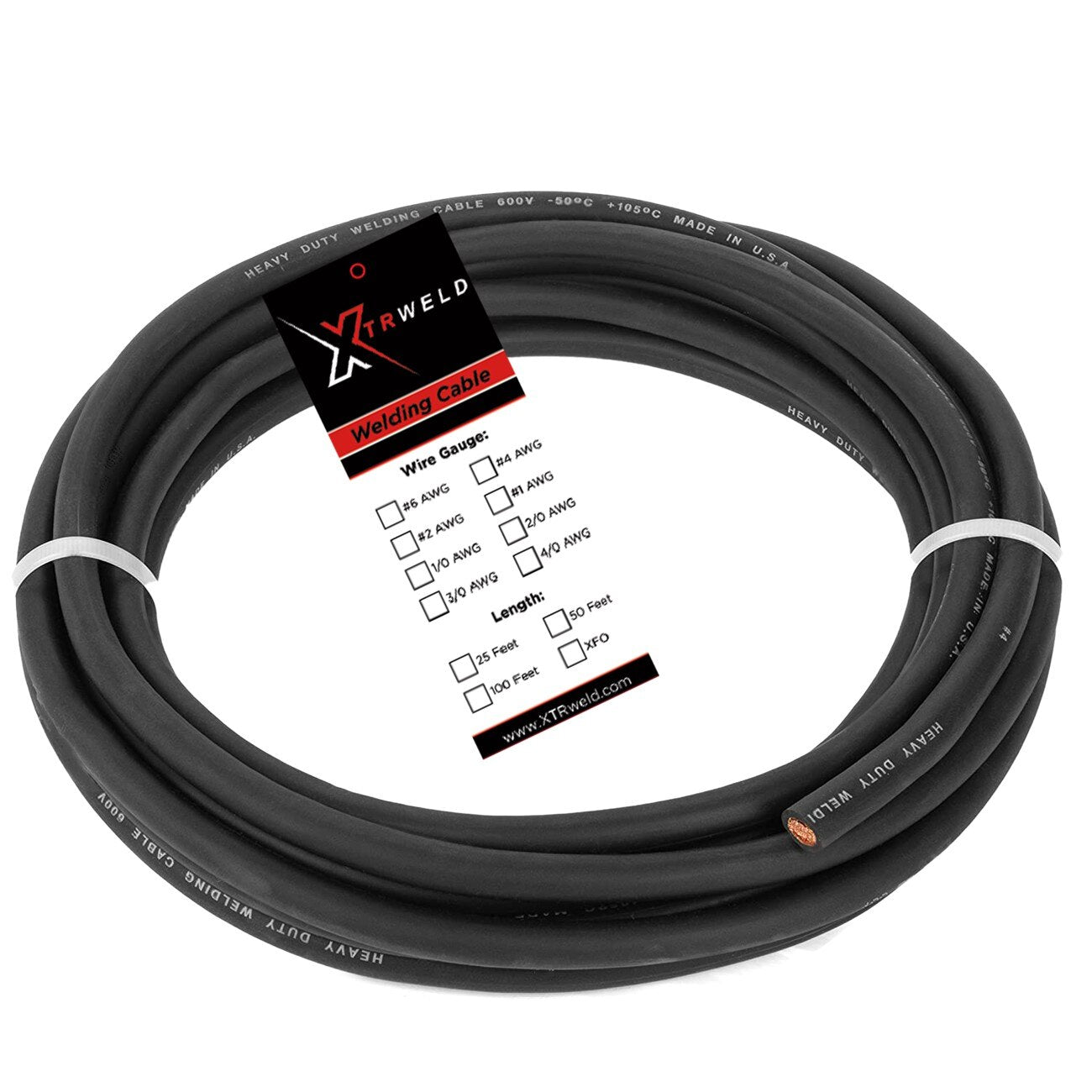

The XTRWELD WCSN1B-25CL is a 1 AWG, 600-volt welding cable cut to a 25-foot length. It is built around a rope-lay, bunch-stranded 30 AWG SAE copper conductor wrapped in a paper separator and jacketed with a proprietary low-smoke halogen-free (LSHF) EPDM compound. The jacket resists abrasion, flame, extreme temperatures, and a wide range of fluids including battery acid, diesel fuel, gasoline, engine oil, engine coolant, ethanol, power-steering fluid, and transmission fluid. Licensed electricians and welding equipment technicians are the primary installers. It is manufactured in the USA and is SAE J1127 and RoHS compliant.

This cable is suited for use in stingers, whips, electrode leads, and ground clamp welding assemblies. It also fits battery applications such as charger wiring and wire harnesses. The 25-foot cut length makes it ready for direct use in field assembly or shop fabrication without additional cutting. Its flexibility and chemical resistance make it appropriate for both indoor shop environments and outdoor or mobile welding setups where fluid and temperature exposure are routine concerns.

Key Features

• Rope-lay, bunch-stranded 30 AWG SAE copper conductor for high flexibility
• Proprietary LSHF EPDM jacket resists flame, abrasion, and extreme temperatures
• Resistant to battery acid, diesel fuel, gasoline, engine oil, ethanol, engine coolant, power-steering fluid, and transmission fluid
• Wrapped paper separator between conductor and jacket
• SAE J1127 compliant (6 to 250 MCM range)
• RoHS compliant and manufactured in the USA

Compatibility

Designed for use in stinger and whip assemblies, electrode leads, ground clamp welding assemblies, and battery-based applications including chargers and wire harnesses rated for 600-volt service at 1 AWG.

Installation Notes

Installation should be performed by a qualified electrician or certified welding equipment technician in accordance with applicable NEC requirements for welding cable applications. De-energize and lock out all power sources before connecting or disconnecting the cable. Inspect termination lugs and connectors for proper sizing to 1 AWG before crimping or bolting. Avoid routing the cable across sharp edges or pinch points that could damage the EPDM jacket over time.

Technical Specifications

• Voltage Rating: 600 volts
• Conductor Size: 1 AWG
• Cut Length: 25 feet
• Conductor Type: Rope-lay, bunch-stranded 30 AWG SAE copper
• Jacket Material: LSHF EPDM compound
• Compliance: SAE J1127, RoHS
• Country of Origin: USA
• Weight: 7.5 pounds

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: WCSN1B-25CL
