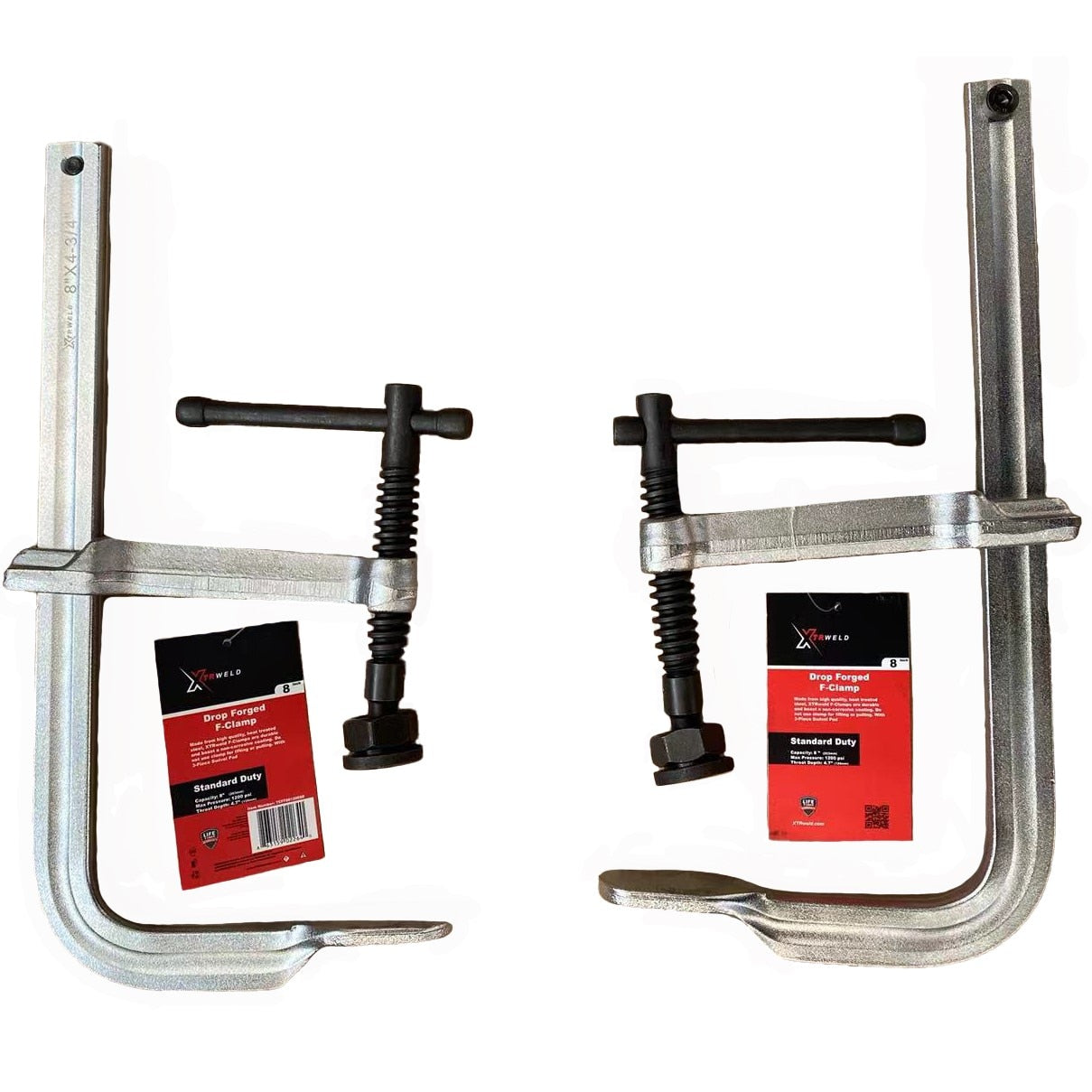

Xtrweld TCFF244800HS F-clamp 24 Inch 4800 Psi Steel Chrome

Product Description

The XTRWELD TCFF244800HS is a heavy-duty F-clamp built for welding, fabrication, and metalworking applications where high clamping force and reach are required. It delivers a maximum clamping pressure of 4800 psi and a clamping capacity of 24 inches, making it suitable for large workpieces that standard clamps cannot span. The three-piece swivel pad design allows the clamp to seat evenly on irregular or angled surfaces, reducing slippage and protecting the workpiece. The bar and body are steel construction with a chrome-plated finish for corrosion resistance and extended service life. Welders, fabricators, and ironworkers will find this clamp well-suited to production and jobsite use.

This F-clamp is intended for use in welding shops, metal fabrication facilities, and general industrial environments where large-span, high-pressure clamping is needed. The 24-inch capacity and 7-inch throat depth allow it to reach deep into assemblies and hold wide stock during tack welding, gluing, or assembly operations. The swivel pad accommodates non-parallel surfaces common in custom fabrication work. It is rated for use as a single unit per the unit of measure designation.

Key Features

• 24-inch clamping capacity for large workpiece spans
• 4800 psi maximum clamping pressure for secure, high-force holding
• Three-piece swivel pad seats evenly on angled or irregular surfaces
• 7-inch throat depth provides reach into deep assemblies
• Steel construction with chrome-plated finish for corrosion resistance
• 42 x 19 mm rail cross-section for rigidity under load

Compatibility

Designed as a heavy-duty F-clamp for general welding, fabrication, and metalworking applications requiring 24-inch span and high clamping pressure.

Installation Notes

F-clamps of this size and pressure rating are typically used by welders and fabricators working with metal assemblies. Always inspect the clamp body and screw mechanism for damage before applying full clamping pressure. Position the swivel pad squarely against the workpiece before tightening to avoid eccentric loading. Do not exceed the rated clamping pressure, and never use extension bars on the handle unless the clamp is rated for that use.

Technical Specifications

• Clamping Capacity: 24 inches (610 mm)
• Clamping Pressure: 4800 psi
• Throat Depth: 7 inches (178 mm)
• Rail Size: 42 x 19 mm
• Pad Type: 3-Piece Swivel Pad
• Material: Steel, Chrome Plated
• Weight: 15.8 pounds
• UPC: 840349217659

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: TCFF244800HS
