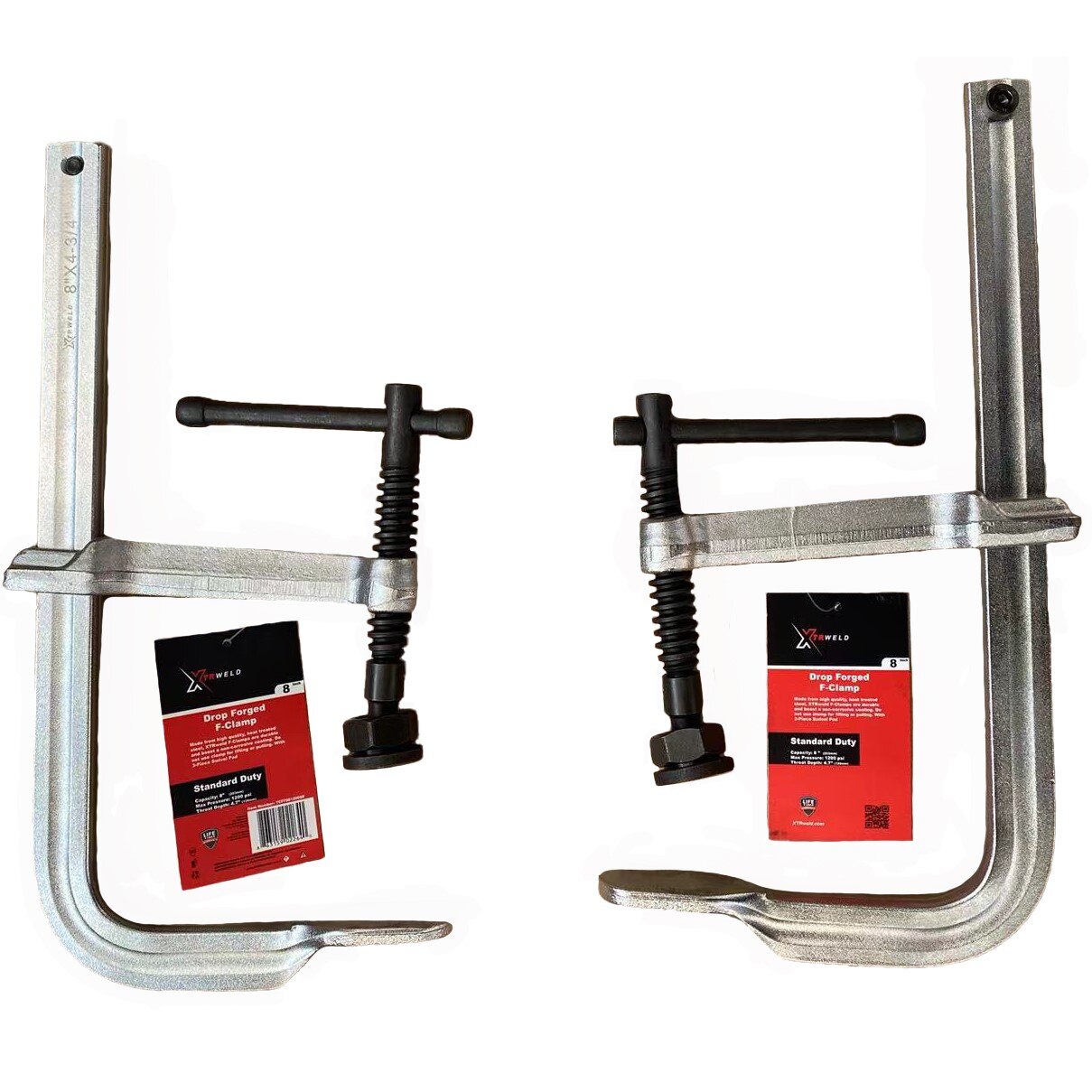

Xtrweld TCFF104800HS F-clamp 10 Inch 4800 Psi Steel Chrome

Product Description

The XTRWELD TCFF104800HS is a heavy-duty F-clamp built for professional welding and fabrication applications. It delivers 4800 psi of clamping pressure across a 10-inch clamping capacity, making it suitable for securing large workpieces during welding, assembly, and metalworking operations. The 3-piece swivel pad design allows the pad to self-adjust to angled or uneven surfaces, reducing the risk of workpiece slippage or marring. Constructed from steel with a chrome-plated finish, the clamp resists corrosion and wear under demanding shop conditions. The 7-inch throat depth provides clearance for deeper reaches into workpieces. At 11.5 pounds, it is a substantial, solid tool intended for trade and industrial use.

This F-clamp is suited for welding shops, fabrication facilities, and industrial assembly environments where high clamping force and reach are required. The 10-inch jaw opening accommodates a wide range of material thicknesses and configurations. The 42x19 mm rail provides stable, smooth sliding action along the bar, allowing quick repositioning without tool removal. It is commonly used by welders, ironworkers, and metal fabricators who need reliable holding force during tack welding, jigging, and structural assembly work.

Key Features

• 4800 psi clamping pressure for heavy-duty holding in demanding fabrication tasks
• 10-inch clamping capacity accommodates large workpieces and thick material stacks
• 3-piece swivel pad self-adjusts to angled or irregular surfaces
• 7-inch throat depth allows deeper reach into workpieces
• 42x19 mm steel rail delivers smooth, stable sliding action
• Chrome-plated steel construction resists corrosion and surface wear

Compatibility

Designed as a general-purpose F-clamp for professional welding, fabrication, and metalworking applications where high clamping force and extended throat depth are required.

Installation Notes

Inspect the clamp for damage to the rail, pad, and screw mechanism before each use. Ensure the swivel pad is seated correctly against the workpiece before applying full clamping force. Do not exceed the rated 4800 psi clamping pressure, and never use a pipe extension on the handle to increase leverage beyond the clamp's design limits. Store in a dry environment to preserve the chrome-plated finish.

Technical Specifications

• Clamping Capacity: 10 inches (254 mm)
• Clamping Pressure: 4800 psi
• Throat Depth: 7 inches (178 mm)
• Rail Size: 42x19 mm
• Material: Steel, Chrome Plated
• Pad Type: 3-Piece Swivel Pad
• Weight: 11.5 pounds
• UPC: 840349217611

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: TCFF104800HS
