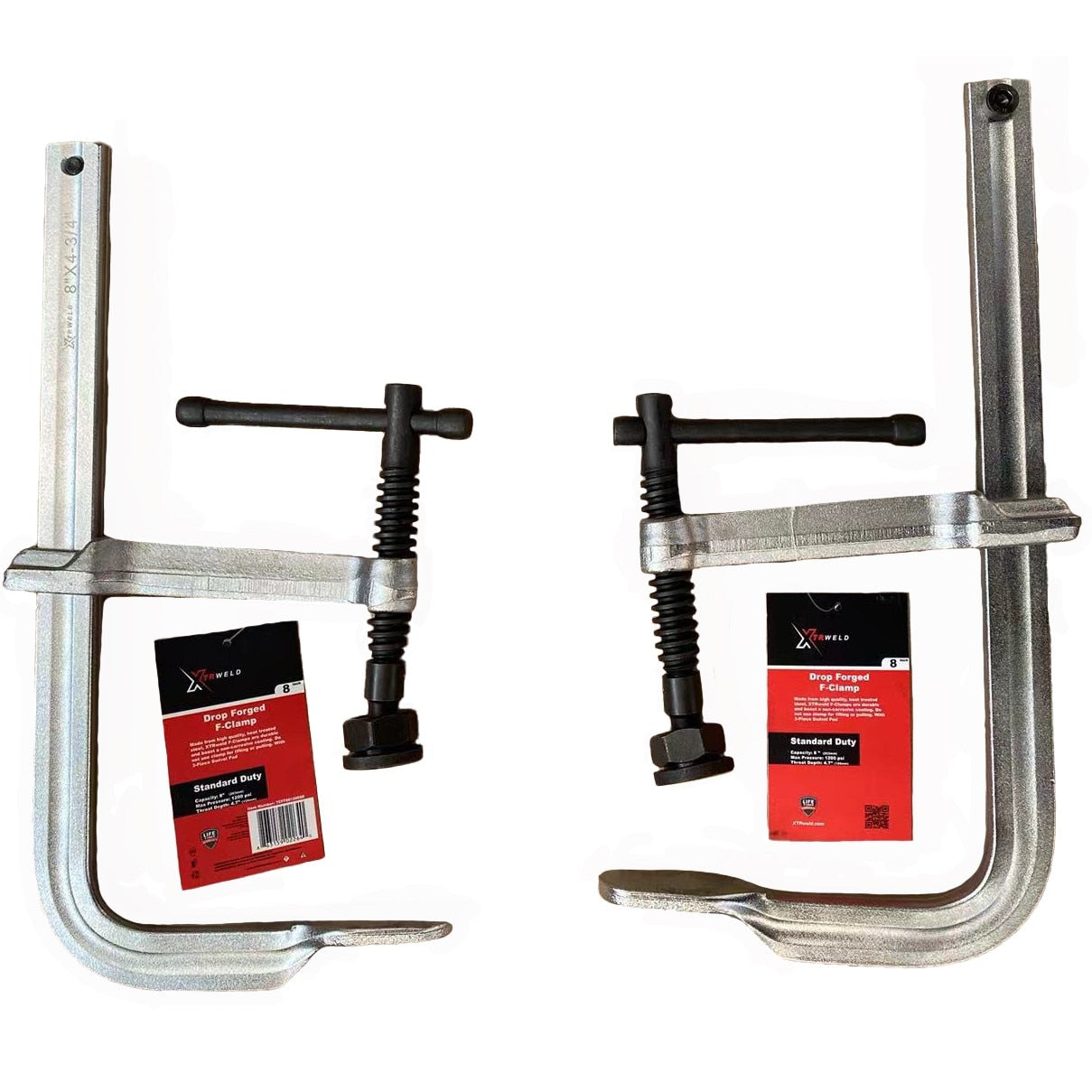

Xtrweld TCFF101200SD F-clamp 1200 Psi 10 Inch Steel

Product Description

The XTRWELD TCFF101200SD is a heavy-duty F-clamp built for high-pressure clamping applications in fabrication, welding, and metalworking environments. It delivers a maximum clamping pressure of 1200 psi and a clamping capacity of 10 inches, making it suitable for securing large workpieces with consistent, even force. The three-piece swivel pad design allows the contact surface to self-adjust to angled or irregular workpiece faces, reducing the risk of marring or misalignment. Constructed from steel with a chrome-plated finish, this clamp resists corrosion and wear during repeated use in shop environments. Welders, fabricators, and pipefitters are the primary users of this tool class.

The TCFF101200SD is suited for use in metal fabrication shops, welding operations, and structural assembly work where a reliable, rigid clamp with deep throat access is required. Its 4.7-inch throat depth provides clearance for workpieces with significant edge-to-clamp-point distance, which is useful when securing flanged or stepped components. The 26 by 12 mm rail provides a stable sliding mechanism for quick jaw positioning across the full 10-inch clamping range.

Key Features

• 1200 psi maximum clamping pressure for secure, high-force holding
• 10-inch clamping capacity handles large workpieces and assemblies
• Three-piece swivel pad self-adjusts to angled or uneven surfaces
• 4.7-inch throat depth allows access to recessed or stepped clamping points
• Steel construction with chrome-plated finish for corrosion resistance and durability
• 26 x 12 mm rail provides smooth, stable jaw travel along the full clamping range

Compatibility

Designed as an OEM-style replacement or direct-use F-clamp for fabrication, welding, and metalworking applications requiring high-pressure clamping with swivel-pad contact.

Installation Notes

Position the clamp on the workpiece before applying torque to the screw mechanism to ensure the swivel pad seats flush against the surface. Inspect the rail and jaw threads for debris or damage before each use, as contamination can reduce clamping force and cause slippage. Always secure workpieces on a stable surface before applying full clamping pressure. This tool does not require power tools or special codes for use, but standard shop safety practices apply.

Technical Specifications

• Clamping Capacity: 10 inches
• Clamping Pressure: 1200 psi
• Throat Depth: 4.7 inches
• Rail Dimensions: 26 x 12 mm
• Pad Type: 3-Piece Swivel Pad
• Material: Steel, Chrome Plated
• Weight: 3.8 pounds
• UPC: 840349217451

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: TCFF101200SD
