Xtrweld LENS24P-SH9 Filter Plate Lens Shade 9 Welding

Product Description

The XTRWELD LENS24P-SH9 is a polycarbonate filter plate lens rated at Shade 9, designed for use in passive welding helmets, goggles, and hand shields. Measuring 2 x 4.25 inches, this lens filters harmful arc light to a safe viewing level appropriate for MIG, TIG, and light plasma cutting operations. The polycarbonate construction provides impact resistance alongside optical clarity. Each unit is packaged individually in a hangable bag for easy point-of-use storage and retail display. This lens meets ANSI Z87.1 and CSA Z94.3 optical and impact standards, making it a code-compliant replacement or spare for field and shop use.

This filter plate is suited for professional welders, fabricators, and industrial maintenance technicians working in both shop and field environments. The Shade 9 rating is appropriate for lower-amperage arc welding processes where a mid-range shade is specified. It fits standard 2 x 4.25 inch lens openings found in a wide range of passive welding helmets and hand shields. Shops and distributors sourcing in quantity should note the minimum order quantity and case pack sizing noted in the specifications below.

Key Features

• Shade 9 filter rating suitable for lower-amperage MIG and TIG welding
• Polycarbonate construction for impact resistance and optical clarity
• Meets ANSI Z87.1 and CSA Z94.3 safety standards
• Standard 2 x 4.25 inch form factor for broad helmet and shield compatibility

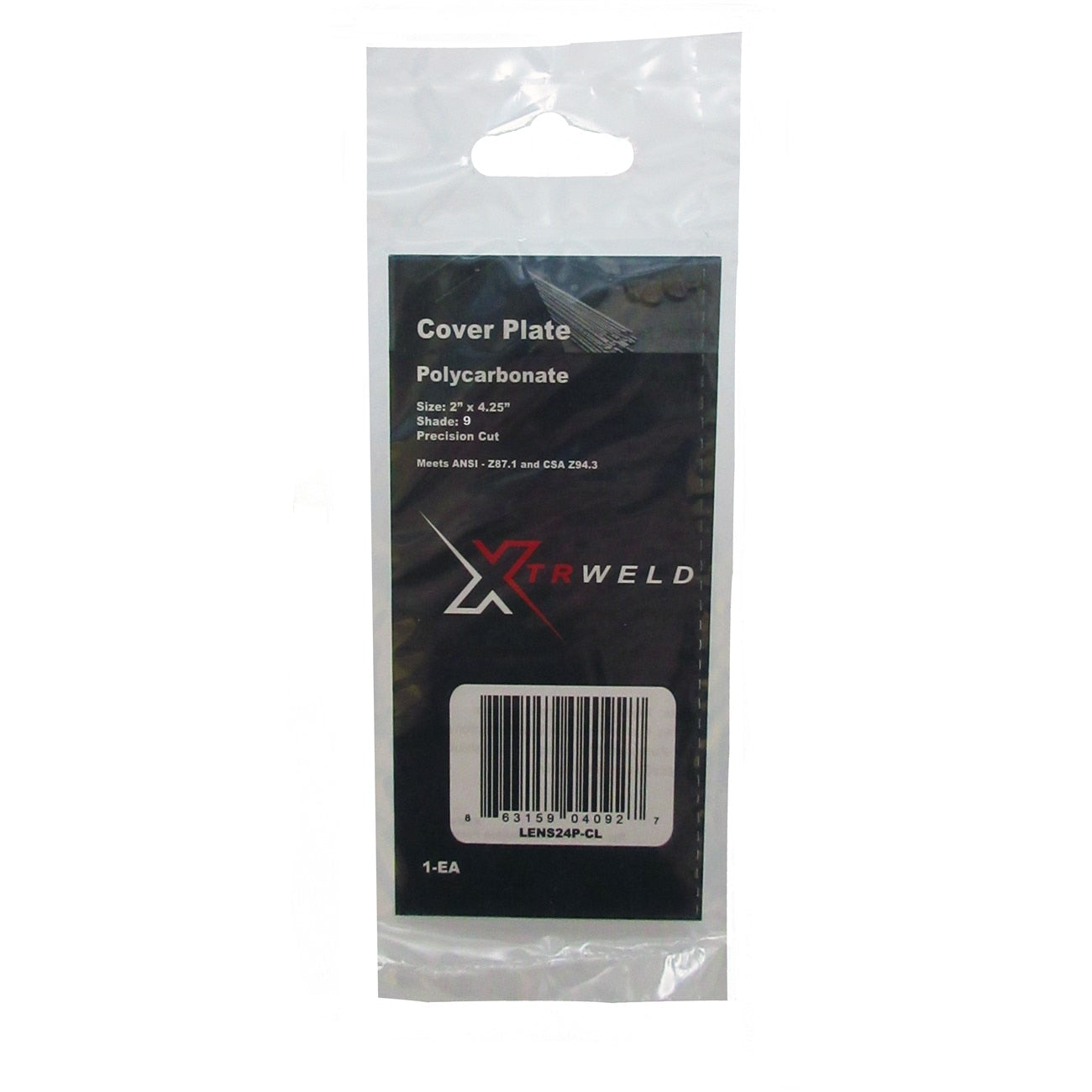

• Individually packaged in a hangable bag for convenient storage and display

Compatibility

Designed as a replacement filter plate for passive welding helmets, goggles, and hand shields that accept a standard 2 x 4.25 inch lens opening.

Installation Notes

Installation is performed by qualified welders or safety personnel following the helmet or shield manufacturer's lens replacement procedure. Ensure the welding power source is off and the work area is safe before replacing lenses. Verify the installed lens shade rating matches the amperage and process requirements specified by ANSI Z49.1 welding safety guidelines. Do not use a cracked, scratched, or improperly seated lens.

Technical Specifications

• Shade: 9
• Lens Size: 2 x 4.25 inches
• Material: Polycarbonate
• Package Length: 4.5 inches
• Package Width: 2.25 inches
• Package Height: 0.25 inches
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 840349232454
• Certifications: ANSI Z87.1, CSA Z94.3

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: LENS24P-SH9
