Xtrweld FWG-7 Weld Fillet Gauge Set 7 Piece

Product Description

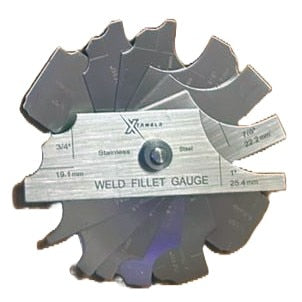

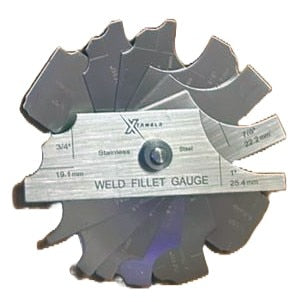

The XTRWELD FWG-7 is a 7-piece weld fillet gauge set designed for quick and accurate measurement of common fillet weld sizes in both imperial and metric units. The set covers a range of 1/8 inch to 1 inch (3.2 mm to 25.4 mm), addressing the most frequently encountered fillet weld dimensions in fabrication and field work. Each gauge is shaped to match a standard fillet profile, allowing the technician to confirm weld size at a glance without additional measuring tools. The set ships with a leather storage pouch for organization and jobsite transport.

This gauge set is suited for welding inspectors, certified welders, fabricators, and quality control personnel working in structural steel, pipe, or sheet metal applications. It is useful in both shop and field environments where weld conformance must be verified against drawing callouts or code requirements. The imperial-and-metric dual-scale coverage makes it compatible with domestic and international project documentation.

Key Features

• 7-piece set covering 1/8 inch to 1 inch fillet weld sizes
• Dual-scale markings in imperial and metric (3.2 mm to 25.4 mm)
• Profile-matched gauges for fast, accurate fillet weld verification
• Includes leather storage pouch for jobsite organization
• Compact form factor suited for tool bags and inspection kits

Compatibility

Designed as a general-purpose fillet weld gauge set compatible with standard fillet weld inspection procedures across structural, pipe, and sheet metal welding applications.

Installation Notes

Fillet weld gauges are inspection tools and do not require installation. Welding inspectors and QC technicians should allow welds to cool completely before contact gauging. Follow applicable welding codes such as AWS D1.1 or applicable project specifications when recording and reporting weld measurements.

Technical Specifications

• Pieces in Set: 7
• Measurement Range (Imperial): 1/8 inch to 1 inch
• Measurement Range (Metric): 3.2 mm to 25.4 mm
• Package Length: 5.5 inches
• Package Width: 3.94 inches
• Package Height: 0.75 inches
• Weight: 0.33 pounds
• Includes: Leather pouch
• UPC: 840349232171

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: FWG-7
