Xtrweld 53N60 Alumina Tig Cup Size 6 Small Gas Lens

Product Description

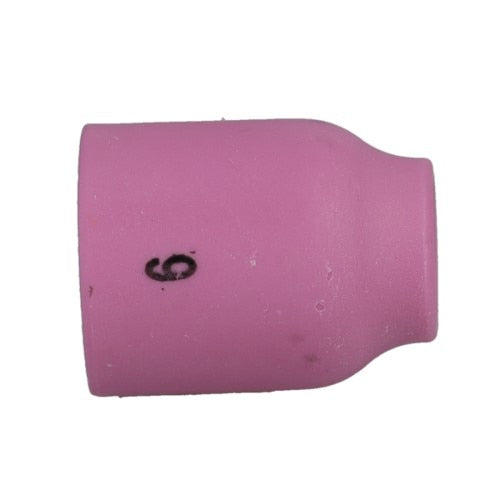

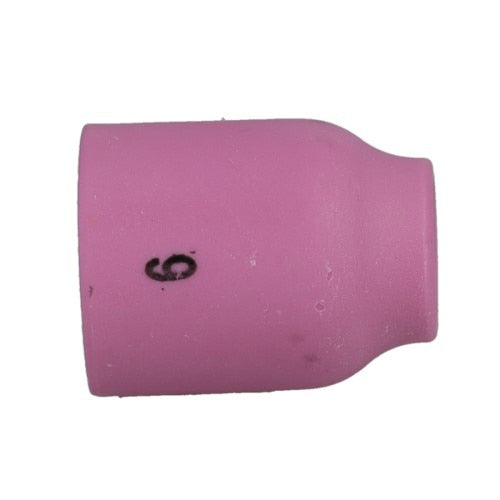

The XTRWELD 53N60 is a size 6 alumina small gas lens cup designed for TIG welding applications using 9 and 20 series torches. Alumina cups are a standard consumable in TIG setups, directing shielding gas flow around the tungsten electrode and weld pool to protect the arc from atmospheric contamination. The size 6 designation indicates nozzle diameter and is marked directly on the cup for fast identification during torch assembly or changeover. This consumable is installed by welding professionals and qualified technicians performing TIG work across metal fabrication, pipe welding, and maintenance applications.

The 53N60 is suited for use with 9 and 20 series TIG torches in both shop and field environments. Its small gas lens cup design works with a gas lens body and collet body configuration to produce a laminar shielding gas flow, improving weld quality on stainless steel, aluminum, and other metals that require clean atmospheric protection. Compatible with OEM and aftermarket 9 and 20 series torch components from all major brands.

Key Features

• Size 6 alumina cup sized for 9 and 20 series TIG torches
• Small gas lens profile supports laminar shielding gas flow
• Nozzle size marked on cup for quick identification during setup
• OEM-quality alumina construction for standard consumable replacement
• Compatible with major-brand 9 and 20 series torch assemblies

Compatibility

Designed for use with 9 and 20 series TIG torches. These OEM-quality consumables are stated to be compatible with all major brands using the same torch series.

Installation Notes

TIG welding consumable replacement is performed by the welding operator or a qualified welding technician. Before changing the cup, ensure the torch is disconnected from the power source and the torch body has cooled completely. Thread the alumina cup onto the gas lens body by hand, taking care not to cross-thread or overtighten, as alumina is brittle and can crack under excessive force. Verify the correct nozzle size is matched to the collet body and gas lens in use before resuming welding.

Technical Specifications

• Cup Size: 6
• Cup Material: Alumina
• Cup Type: Small Gas Lens
• Compatible Torch Series: 9, 20
• Weight: 0.28 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 53N60
