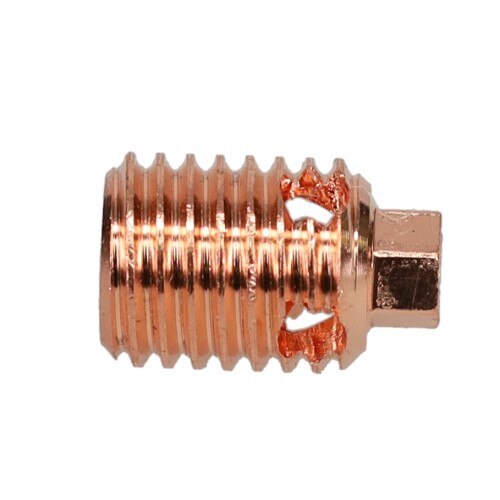

Xtrweld 53N19 Tig Collet Body 1/16 Inch 24 Series

Product Description

The XTRWELD 53N19 is a standard TIG collet body sized for 1/16 inch electrodes, designed for use with 24 Series TIG torches. The collet body secures the tungsten electrode inside the torch head and maintains proper alignment during the welding arc. It measures 0.31 inches in width and 0.47 inches in height. This is a direct-replacement consumable intended for professional welders and fabricators performing TIG welding on a regular production or service schedule. The electrode diameter is marked directly on the body for fast identification when swapping consumables at the bench or in the field.

The 53N19 collet body fits standard 24 Series air-cooled TIG torch setups commonly found in light fabrication shops, maintenance welding, and pipe and tube work. It is suited for residential, commercial, and industrial TIG applications where a 1/16 inch tungsten is the specified electrode size. Because this is an OEM-quality consumable, it is built to match the dimensional tolerances of factory-supplied collet bodies for consistent electrode grip and gas seal performance.

Key Features

• Sized for 1/16 inch tungsten electrodes
• Fits standard 24 Series TIG torch bodies
• Electrode diameter marked on body for easy field identification
• OEM-quality construction for consistent fit and electrode retention
• Compatible with major TIG torch brands using 24 Series consumables

Compatibility

Compatible with 24 Series TIG torches. Designed as an OEM-style replacement collet body compatible with all major brands using 24 Series torch consumables.

Installation Notes

Collet body replacement is performed by licensed welding technicians or qualified fabricators. Before servicing the torch, disconnect the power source and allow the torch to cool completely. Remove the back cap, tungsten, and collet before unseating the collet body. Do not overtighten the torch cap after reinstalling, as excess force can deform the collet body and restrict electrode movement.

Technical Specifications

• Electrode Size: 1/16 inch
• Width: 0.31 inches
• Height: 0.47 inches
• Weight: 0.01 pounds
• Torch Series: 24 Series
• Unit of Measure: Pack

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 53N19
