Xtrweld 53N18 Tig Collet Body Standard 0.04 Inch

Product Description

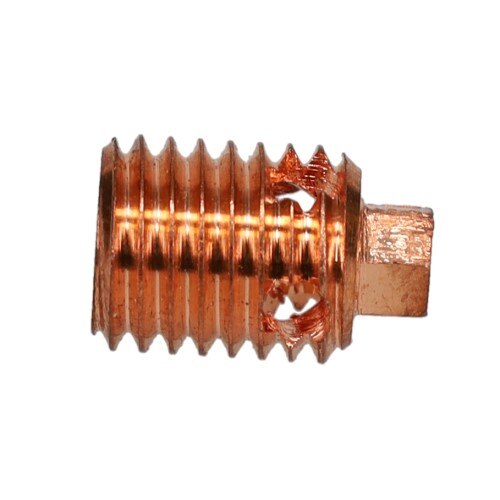

The XTRWELD 53N18 is a standard collet body designed for use with 24 Series TIG welding torches. The collet body holds the collet and electrode in precise alignment during the TIG welding process, ensuring consistent arc stability and proper gas coverage. Built to OEM quality standards, the 53N18 measures 0.31 inches in width and 0.47 inches in height, and is sized for a 0.04 inch electrode diameter. It is a direct consumable replacement for TIG torch maintenance and is installed by welders and fabricators performing routine torch service.

This collet body is intended for 24 Series TIG torches and suits both shop and field welding applications. Whether used in light fabrication, pipe work, or precision welding on ferrous and non-ferrous metals, the 53N18 fits into standard torch assemblies without modification. The electrode diameter size is marked directly on the part for easy identification during torch setup and consumable changes.

Key Features

• Sized for 0.04 inch electrode diameter, marked on the part for fast identification
• Standard collet body format for 24 Series TIG torches
• OEM quality construction compatible with all major TIG torch brands in the 24 Series configuration
• Compact form factor: 0.31 inches wide by 0.47 inches tall
• Sold as a single unit (minimum order quantity: 1)

Compatibility

Compatible with 24 Series TIG welding torches and designed to work with all major brands using the standard 24 Series collet body configuration.

Installation Notes

Installation is performed by a qualified welder or torch technician. Before replacing the collet body, disconnect the torch from the power source and allow it to cool completely. Unthread the torch back cap, remove the existing collet and collet body, and seat the new 53N18 collet body before reassembling with the appropriate collet and tungsten electrode. Avoid overtightening the back cap, as this can damage the collet body or distort the electrode alignment.

Technical Specifications

• Electrode Diameter: 0.04 inches
• Width: 0.31 inches
• Height: 0.47 inches
• Weight: 0.01 pounds
• Torch Series: 24 Series
• Type: Standard Collet Body
• UPC: 840349228747

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 53N18
