Xtrweld 53N17 Tig Collet Body 0.020 Inch 24 Series

Product Description

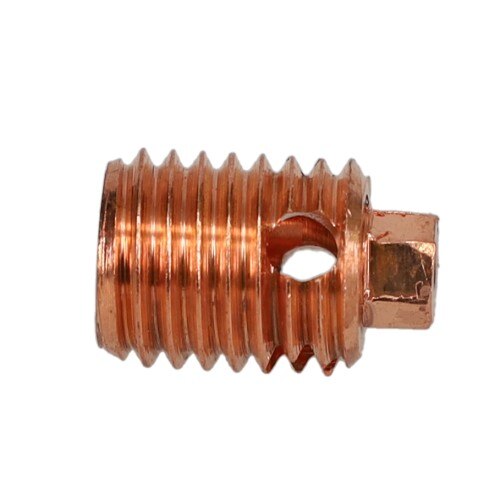

The XTRWELD 53N17 is a standard collet body designed for use with 24 Series TIG torches. It accepts a 0.020 inch electrode and serves as the core consumable that aligns and secures the collet and tungsten electrode inside the torch head. The collet body channels shielding gas flow around the tungsten and maintains proper electrode position during the weld. Each unit is marked with the electrode diameter for quick identification in the field, reducing setup errors when switching between tungsten sizes. This part is installed by certified welding technicians and skilled trade professionals performing TIG welding operations.

The 53N17 collet body is sized for 0.020 inch tungsten electrodes and is built to OEM quality standards for reliable fitment in 24 Series TIG torch assemblies. It is suited for both shop and field TIG welding applications where precise electrode alignment and consistent gas coverage are required. The compact dimensions of 0.31 inches in width and 0.47 inches in height make it a direct-fit consumable replacement in standard 24 Series torch configurations used across light fabrication, maintenance welding, and precision weld applications.

Key Features

• Sized for 0.020 inch tungsten electrodes
• Compatible with 24 Series TIG torch assemblies
• Electrode diameter marked on part for quick identification
• OEM-quality construction for consistent fit and gas seal
• Compact form factor: 0.31 inches wide by 0.47 inches tall

Compatibility

Compatible with 24 Series TIG torches. Manufactured to OEM quality standards and stated as compatible with all major brands of 24 Series torch equipment.

Installation Notes

Installation is performed by qualified welding technicians. Before replacing the collet body, disconnect the torch from the power source and allow it to cool completely. The collet body threads or seats into the torch head and must be fully seated to maintain proper shielding gas flow and electrode alignment. Avoid overtightening, which can deform the collet body or damage torch head threads.

Technical Specifications

• Electrode Diameter: 0.020 inches
• Width: 0.31 inches
• Height: 0.47 inches
• Weight: 0.01 pounds
• Series Compatibility: 24 Series Torch
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 53N17
