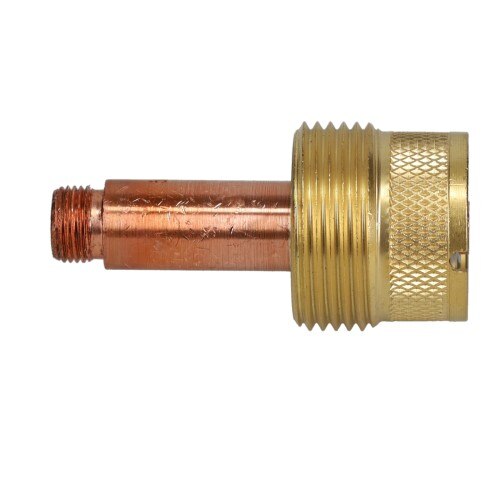

Xtrweld 45V63 Tig Gas Lens Standard Large 5/32 Inch

Product Description

The XTRWELD 45V63 is a standard large gas lens designed for TIG welding torches. Sized at 5/32 inch electrode diameter and 0.94 inches wide, it replaces the standard collet body in a TIG torch head to distribute shielding gas evenly across the weld zone. This even gas distribution reduces turbulence, improves arc stability, and allows the tungsten to be extended further from the cup without losing shielding gas coverage. The electrode diameter is marked directly on the lens for quick identification during torch assembly. Welders and fabricators working with 17, 18, and 26 series torches will find this a direct drop-in consumable.

The 45V63 gas lens is suited for use in professional and shop welding environments where consistent shielding gas coverage is critical to weld quality. It fits 17, 18, and 26 series TIG torches, which are among the most widely used air-cooled torch formats in the trade. Applications include structural fabrication, pipe welding, sheet metal work, and any TIG process where arc stability and clean shielding are priorities. The lens is manufactured to OEM quality standards and is compatible with all major torch brands that accept 17, 18, and 26 series consumables.

Key Features

• Standard large gas lens sized for 5/32 inch electrode diameter
• 0.94 inch body width fits 17, 18, and 26 series TIG torch heads
• Laminar flow design reduces shielding gas turbulence for improved arc stability
• Electrode diameter marked on lens body for fast identification during assembly
• OEM quality construction compatible with all major 17, 18, and 26 series torch brands

Compatibility

Designed for use with 17, 18, and 26 series TIG torches. Compatible with all major brands that accept standard large consumables in these series.

Installation Notes

Installation is performed by qualified welders or TIG torch technicians. Before replacing the gas lens, shut off the shielding gas supply and disconnect the torch from the power source. Thread the gas lens into the torch head by hand first to avoid cross-threading, then snug with the appropriate torch wrench. Verify the correct collet and back cap are matched to the 5/32 inch electrode size before reassembly.

Technical Specifications

• Electrode Size: 5/32 inch
• Body Width: 0.94 inches
• Lens Type: Standard Large
• Compatible Torch Series: 17, 18, 26
• Weight: 0.24 pounds
• UPC: 840349229973

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 45V63
