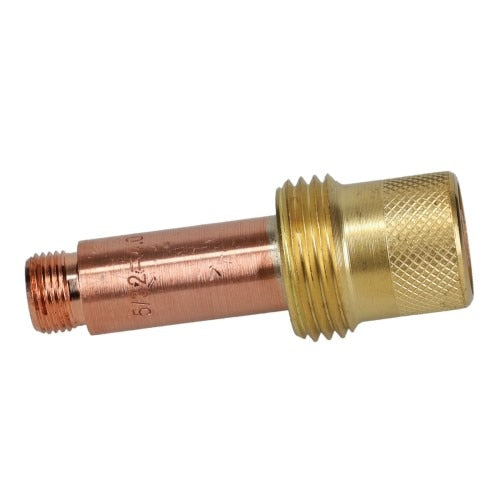

Xtrweld 45V28 Tig Gas Lens Standard Medium 5/32 Inch

Product Description

The XTRWELD 45V28 is a standard medium gas lens designed for TIG welding torches. Gas lenses replace the standard collet body in a TIG torch and use a layered mesh screen to produce a laminar, evenly distributed shielding gas flow around the tungsten electrode. This stabilized gas coverage improves arc quality, reduces contamination of the weld pool, and allows the tungsten to be extended farther from the cup without losing gas coverage. The 45V28 measures 0.62 inches in diameter and fits the 5/32 inch electrode size. It is installed by licensed welding professionals and skilled trade technicians performing TIG welding on ferrous and non-ferrous metals.

This gas lens is suited for use with 17, 18, and 26 series TIG torches, which are among the most widely used air-cooled torch configurations in the trade. Typical applications include structural fabrication, pipe welding, aerospace component repair, and general maintenance welding where clean, consistent shielding is required. The part is marked with the electrode diameter for quick identification in the field, reducing setup errors when switching electrode sizes during a job.

Key Features

• Standard medium form factor fits 17, 18, and 26 series TIG torches
• Accepts 5/32 inch tungsten electrodes
• Produces laminar shielding gas flow for cleaner, more stable arcs
• Electrode diameter marking on body for fast identification and reduced setup errors
• OEM-quality construction compatible with all major torch brands

Compatibility

Designed for use with 17, 18, and 26 series TIG torches and accepts 5/32 inch electrodes. Compatible with all major torch brands as an OEM-style replacement gas lens.

Installation Notes

Gas lens installation is performed by qualified welding technicians. Power down and disconnect the welder from its power source before servicing torch consumables. Remove the existing collet body, slip the gas lens into the torch head in its place, and seat the collet and back cap before resuming operation. Inspect the mesh screen for plugging or damage at each consumable change, as a blocked screen will disrupt shielding gas flow and degrade weld quality.

Technical Specifications

• Electrode Size: 5/32 inches
• Body Diameter: 0.62 inches
• Lens Type: Standard Medium Gas Lens
• Compatible Torch Series: 17, 18, 26
• Weight: 0.16 pounds
• Minimum Order Quantity: 1
• UPC: 840349229966

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 45V28
