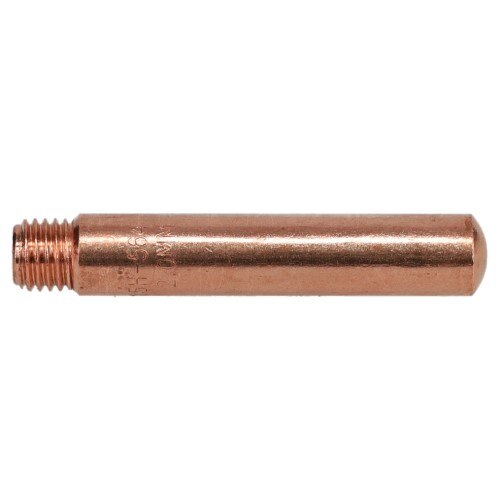

Xtrweld 15H-564 Contact Tip 5/64 Inch 500A Tweco Style

Product Description

The XTRWELD 15H-564 is a standard contact tip designed for MIG welding applications using 5/64 inch diameter wire. It is built to Tweco 15H series dimensions and fits Tweco-style MIG guns rated up to 500 amps. The tip transfers welding current from the gun to the wire at the point of contact, directly affecting arc stability and weld quality. It is a consumable component that wears during normal operation and requires periodic replacement. Each tip is marked with the part number or wire size for quick identification during changeout. Welding technicians and fabricators working with heavy-duty MIG setups will find this tip suitable for production and repair environments.

This contact tip is intended for use with Tweco-style 500A MIG welding guns, including guns compatible with the Classic Weldskill series. It is suited for industrial and fabrication environments where 5/64 inch wire feed is standard. Typical applications include structural welding, heavy fabrication, and repair work where higher amperage MIG guns are in service. The OEM-style construction allows direct replacement without modification to the gun or liner.

Key Features

• Designed for 5/64 inch diameter MIG welding wire
• Rated for use with Tweco-style MIG guns up to 500A
• Compatible with Tweco Classic Weldskill style guns
• Marked with part number and wire size for fast field identification
• OEM-quality construction for direct drop-in replacement

Compatibility

Designed as an OEM-style replacement contact tip for Tweco-style 500A MIG guns, including those compatible with the Classic Weldskill series, using 5/64 inch wire. Brand names referenced are for identification purposes only.

Installation Notes

Contact tip replacement is a routine maintenance task performed by welding technicians. Always power down the welder and allow the gun to cool before removing a worn tip to avoid burns or accidental arc initiation. Use appropriate tip pliers or a wrench sized for the tip hex to avoid damaging the diffuser threads. Inspect the gas diffuser and liner for wear or spatter buildup whenever the contact tip is replaced.

Technical Specifications

• Wire Size: 5/64 inches
• Series: 15H Standard
• Tip Diameter: 0.341 inches
• Amperage Rating: 500A
• Weight: 0.52 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 15H-564
