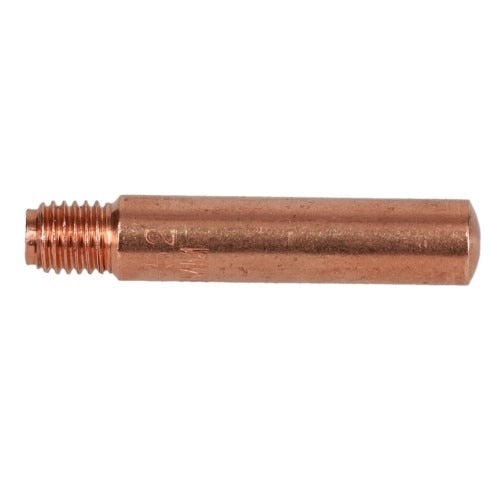

Xtrweld 14H-52 Heavy Duty Contact Tip 0.052 Inch 14H Series

Product Description

The XTRWELD 14H-52 is a heavy duty contact tip in the 14H Series, designed for use with Tweco style MIG guns. Rated for gun amperages from 180A to 450A, it features a 0.052 inch bore diameter for matching wire size. The overall length is 1.48 inches and the outer diameter is 0.283 inches. This tip is manufactured to OEM-equivalent quality standards and is marked with its part number and bore size directly on the body for fast identification during wire changes or tip swaps on active jobs. It is suited for demanding MIG welding environments where consistent electrical contact and arc stability are required.

The 14H-52 is intended for use with Tweco style MIG gun platforms operating in the 180A to 450A range. Compatible gun lines include Classic, Eliminator, Weldskill, Spray Master, Smoke Master, and Supra style torches. It is commonly installed in fabrication shops, structural steel environments, and industrial production welding cells where heavy duty consumables are required to handle higher duty cycles and elevated amperage loads.

Key Features

• 0.052 inch bore diameter matches standard 0.052 inch MIG wire
• Heavy duty 14H Series design rated for 180A to 450A Tweco style MIG guns
• 1.48 inch overall length with 0.283 inch outer diameter
• OEM-equivalent quality construction for consistent arc performance
• Part number and bore size marked on tip body for quick field identification
• Interchangeable with Tweco Weldskill and other Tweco style consumables

Compatibility

Designed for use with Tweco style MIG guns rated 180A to 450A, including Classic, Eliminator, Weldskill, Spray Master, Smoke Master, and Supra style torches. Compatible with 0.052 inch MIG welding wire.

Installation Notes

Contact tip replacement is a routine consumable service performed by welders and MIG gun maintenance technicians. Always power down the welding machine and allow the gun neck to cool before removing a worn or damaged tip. Use the appropriate tip wrench or pliers to avoid cross-threading when installing the replacement tip. Inspect the gun liner and diffuser for wear whenever the contact tip is changed.

Technical Specifications

• Bore Diameter: 0.052 inches
• Overall Length (OAL): 1.48 inches
• Outer Diameter: 0.283 inches
• Series: 14H Heavy Duty
• Amperage Range: 180A to 450A
• Weight: 0.24 pounds
• UPC: 840349220710

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 14H-52
