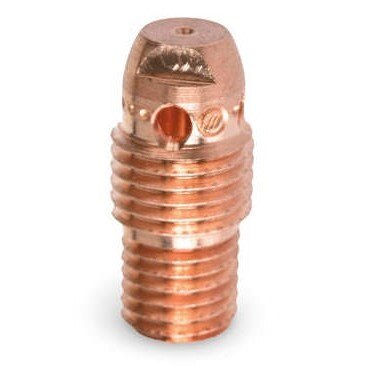

Xtrweld 13N27 Tig Collet 1/16 Inch Standard 9 20 Series

Product Description

The XTRWELD 13N27 is a standard-style TIG welding collet sized for 1/16 inch electrodes, designed for use with 9 and 20 series TIG torches. The collet is the internal torch component that grips and centers the tungsten electrode, ensuring consistent arc stability and proper current transfer during GTAW operations. At 0.82 inches in height and 0.04 inches in nominal bore size, this is a direct-fit consumable replacement suited for professional welding technicians and fabricators running compatible torch configurations. The part is marked with the electrode diameter for quick identification during torch assembly and consumable changes.

This collet fits 9 and 20 series TIG torch bodies, which are among the most widely used air-cooled torch platforms in light-duty and general fabrication environments. It is appropriate for both shop and field service scenarios where consumable replacement is part of routine torch maintenance. Welding contractors, pipefitters, and maintenance welders performing GTAW work will encounter this collet size frequently when working with 1/16 inch tungsten electrodes on thin-gauge material applications.

Key Features

• Standard style collet body sized for 1/16 inch tungsten electrodes
• Compatible with 9 and 20 series TIG torch bodies
• OEM-quality construction for reliable electrode grip and current transfer
• Electrode diameter marked directly on the collet for easy identification
• Lightweight at 0.05 pounds for minimal torch balance impact

Compatibility

Designed as a direct-fit consumable for 9 series and 20 series TIG torch bodies accepting 1/16 inch standard collets.

Installation Notes

TIG collet replacement is performed by licensed welders and qualified welding technicians as part of standard torch maintenance. Always de-energize and disconnect the torch from the power source before disassembling the torch head. Ensure the collet seats fully and the collet body is threaded in properly before inserting the tungsten and tightening the back cap. Follow the torch manufacturer's assembly sequence to avoid cross-threading or incomplete electrode seating.

Technical Specifications

• Electrode Size: 1/16 inch
• Collet Height: 0.82 inches
• Bore Size: 0.04 inches
• Style: Standard
• Compatible Torch Series: 9, 20
• Weight: 0.05 pounds

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 13N27
