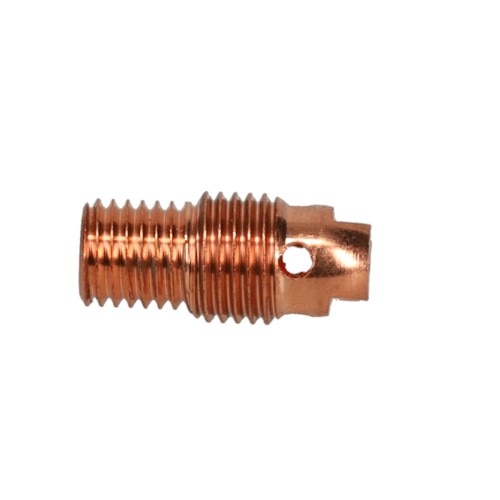

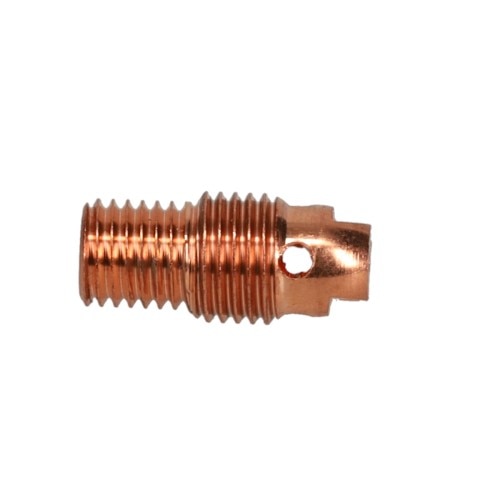

Xtrweld 13N25 Collet Body Standard Tig Torch 9 20 Series

Product Description

The XTRWELD 13N25 is a standard collet body designed for TIG welding torches, specifically the 9 and 20 series. Collet bodies serve as the mechanical interface between the collet and the torch head, holding the tungsten electrode in precise alignment during the welding arc. This collet body is sized for a 0.020-inch electrode diameter and is clearly marked for quick identification at the torch. At 0.05 pounds, it is a lightweight consumable that requires periodic replacement as part of routine torch maintenance. Installation is handled by welding technicians and skilled trades familiar with TIG torch assembly.

This collet body is suited for light-duty TIG welding applications where a 0.020-inch tungsten electrode is required. The 9 and 20 series torch platforms are widely used in both shop and field environments for thin-material welding on steel, stainless, and aluminum. Technicians working with these torch bodies will find this collet body a direct-fit consumable replacement. It measures 0.31 inches in width and 0.82 inches in height, fitting within the standard torch head geometry of the supported series.

Key Features

• Sized for 0.020-inch electrode diameter for precise tungsten retention
• Compatible with 9 and 20 series TIG torches
• Electrode diameter marking on body for fast identification during torch setup
• OEM-quality construction compatible with all major torch brands in the supported series
• Lightweight at 0.05 pounds for easy handling and quick changeover

Compatibility

Designed for use with 9 and 20 series TIG welding torches. Compatible with all major brands using standard 9 and 20 series torch configurations. Fits 0.020-inch electrode diameter collet assemblies within these torch families.

Installation Notes

Collet body replacement is performed by welding technicians during routine torch maintenance or consumable changeover. Always power down the welder and allow the torch to cool completely before disassembling the torch head. Ensure the collet, collet body, and back cap are reassembled in the correct order per the torch manufacturer's assembly diagram to maintain proper gas shielding and electrode alignment. Avoid overtightening the back cap, as this can damage the collet body or deform the collet.

Technical Specifications

• Electrode Diameter: 0.020 inches
• Width: 0.31 inches
• Height: 0.82 inches
• Weight: 0.05 pounds
• Compatible Torch Series: 9, 20
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 13N25
