Xtrweld 13N10 Alumina Standard Tig Cup Size 6 10 Pack

Product Description

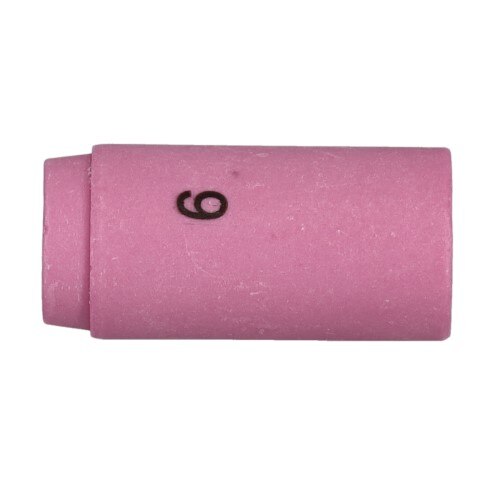

The XTRWELD 13N10 is a Size 6 alumina standard cup designed for TIG welding applications. The cup fits 9 and 20 Series TIG torches and provides a stable gas shield around the tungsten electrode during the welding arc. Alumina ceramic construction handles the high-heat demands of TIG welding while resisting contamination from spatter. Each pack contains 10 cups, making it a practical stocking item for shops and field welders who cycle through nozzles regularly. The 3/8-inch bore size suits standard electrode setups used across a wide range of base metals and joint configurations.

This cup is suited for professional TIG welders working in fabrication shops, maintenance and repair operations, and light industrial environments. The standard cup profile works across common welding positions and material types. At 10 units per pack, it is well matched for multi-tech shops or individual welders who want to keep spares on hand. Installers and welders who run 9 or 20 Series torches will find this a direct consumable replacement for regular torch maintenance.

Key Features

• Alumina ceramic construction for high-heat resistance and arc stability
• Size 6 standard cup profile with 3/8-inch bore
• Compatible with 9 and 20 Series TIG torches
• 10 cups per pack for efficient restocking
• Standard cup geometry suits a broad range of welding positions and joint types

Compatibility

Designed for use with 9 and 20 Series TIG torches as a standard consumable cup replacement.

Installation Notes

TIG torch cup replacement is a routine consumable task performed by the welder before or during a job. Always ensure the torch is fully cooled and the machine is powered off before removing or threading on a new cup. Inspect the collet body and back cap for wear when changing cups. Hand-tighten only — overtightening alumina ceramic cups can cause cracking.

Technical Specifications

• Cup Size: 6
• Bore Diameter: 3/8 inches
• Material: Alumina ceramic
• Pack Quantity: 10
• Weight: 0.18 pounds

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 13N10
