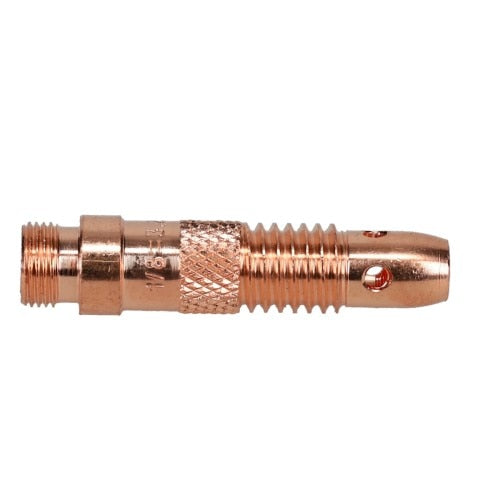

Xtrweld 10N29 Tig Collet 0.020 Inch Standard Style

Product Description

The XTRWELD 10N29 is a standard-style TIG collet sized for 0.020-inch electrodes, designed for use with 17, 18, and 26 series TIG torches. The collet is the precision-machined consumable inside the torch body that clamps and centers the tungsten electrode during the welding arc. Proper collet fit is critical to arc stability and electrode alignment. At 1.85 inches in height and approximately 0.17 pounds, the 10N29 is a lightweight, direct-fit consumable suitable for professional welding applications. The electrode diameter is marked directly on the part for quick identification during torch assembly or consumable changeover.

This collet is intended for use in light-duty TIG welding scenarios where a 0.020-inch tungsten is appropriate, such as thin-gauge sheet metal or precision work requiring a small electrode diameter. It fits the widely used 17, 18, and 26 series torch platforms, which are common across both shop and field welding setups. Licensed welders and fabricators servicing or restocking torch consumables will find this a straightforward drop-in replacement for standard-style collets in these torch families.

Key Features

• Sized for 0.020-inch tungsten electrodes
• Standard collet style compatible with 17, 18, and 26 series TIG torches
• Electrode diameter marked on the part for fast identification
• OEM-quality construction for reliable electrode clamping and arc stability
• Lightweight at 0.17 pounds for easy handling and torch assembly

Compatibility

Compatible with 17, 18, and 26 series TIG torches. Designed as an OEM-quality replacement compatible with all major torch brands using the standard collet body style in these series.

Installation Notes

Installation is performed by qualified welders or welding equipment technicians. Always disconnect the torch from the power source and allow it to cool completely before replacing collets or other consumables. Insert the collet into the torch body per the torch manufacturer's assembly sequence, ensuring the correct collet size matches the tungsten diameter in use. Do not overtighten the back cap, as excessive force can deform the collet and affect electrode grip.

Technical Specifications

• Electrode Size: 0.020 inches
• Collet Style: Standard
• Height: 1.85 inches
• Weight: 0.17 pounds
• Minimum Order Quantity: 1
• UPC: 840349228495

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 10N29
