Xtrweld 10N23 Tig Collet 1/16 Inch Standard Style

Product Description

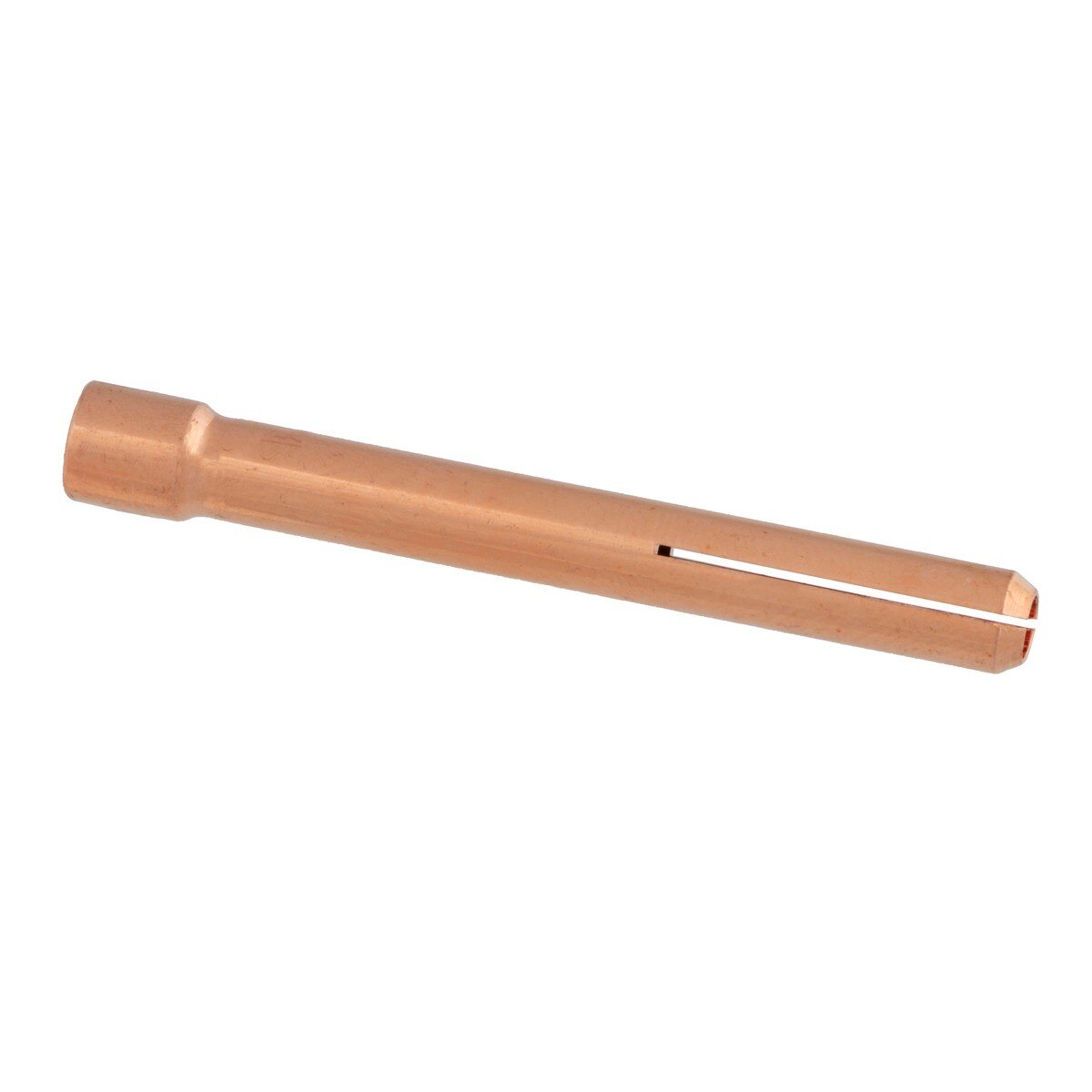

The XTRWELD 10N23 is a standard-style TIG collet sized for 1/16-inch tungsten electrodes, designed for use with 17, 18, and 26 series TIG torches. The collet holds the tungsten electrode firmly in alignment inside the torch body, maintaining consistent arc stability and proper gas coverage during the weld. At 1.97 inches in height and weighing 0.06 pounds, it is a lightweight consumable replaced regularly as part of routine torch maintenance. The part number is marked directly on the collet for fast identification when pulling from a consumables kit. Licensed welding professionals and certified fabricators are the primary installers of this component.

The 10N23 collet fits the widely used 17, 18, and 26 series air-cooled TIG torch configurations found in light industrial, fabrication shop, and field welding applications. This collet size accommodates 1/16-inch tungsten, a common electrode diameter used for lower-amperage TIG work on thin-gauge steel, stainless steel, and aluminum. It is sold individually with a minimum order quantity of one unit, making it straightforward to stock as a single replacement or in multiples for ongoing torch maintenance programs.

Key Features

• Sized for 1/16-inch tungsten electrodes for precise electrode retention and arc control
• Standard style compatible with 17, 18, and 26 series TIG torches
• OEM-quality construction compatible with all major torch brands in the same series
• Part number marked on collet for easy identification during consumable selection
• Lightweight at 0.06 pounds, minimizing added mass to the torch assembly

Compatibility

Designed for use with 17, 18, and 26 series TIG torches. Compatible with all major torch brands utilizing standard collet configurations in these series. Accepts 1/16-inch tungsten electrodes.

Installation Notes

Installation is performed by a qualified welder or TIG torch technician. Always power down the welding machine and allow the torch to cool completely before disassembling the torch body to replace consumables. Thread the collet into the torch body by hand to avoid cross-threading, then seat the collet body and back cap to the manufacturer-recommended fit. Inspect the collet for wear, scoring, or deformation at each tungsten change interval.

Technical Specifications

• Electrode Size: 1/16 inch
• Collet Style: Standard
• Height: 1.97 inches
• Weight: 0.06 pounds
• Compatible Torch Series: 17, 18, 26
• UPC: 840349229225

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 10N23
