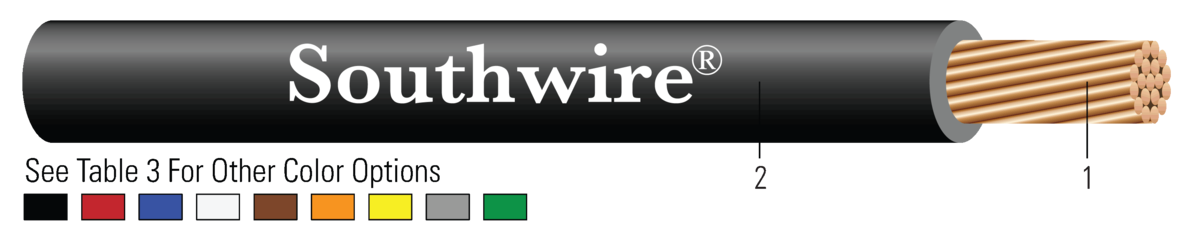

XHHWCU XHHW500MCMSTRORGMR 500 KCMIL Copper SIMpull XHHW-2/RW90 Conductor

Product Description

The XHHWCU XHHW500MCMSTRORGMR is designed for reliable electrical performance in various environments. It is a copper SIMpull XHHW-2/RW90 conductor suitable for conduit, cable trays, and other recognized raceways. This conductor complies with the National Electrical Code for use in services, feeders, and branch circuit wiring.

• Works in both wet and dry locations at temperatures up to ninety degrees Celsius.
• Meets sunlight resistance and cold bend requirements at minus forty degrees Celsius.
• Compliant with Gasoline and Oil Resistant II standards and RoHS/REACH regulations.

Product Highlights

This conductor is perfect for open wiring and use in raceways, making it suitable for a variety of applications in electrical installations.

Product Information

Standard Information

• Brand: XHHWCU
• MPN: XHHW500MCMSTRORGMR

Technical Specifications

• Conductor Size: 500 KCMIL
• Conductor Number: 1
• Conductor Strands: 37
• Diameter Over Conductor: 0.789 inches
• Insulation Thickness: 65 mils
• Approx. OD: 0.908 inches
• Copper Weight: 1543 lbs/1000'
• Approx. Weight: 1632 lbs/1000'
