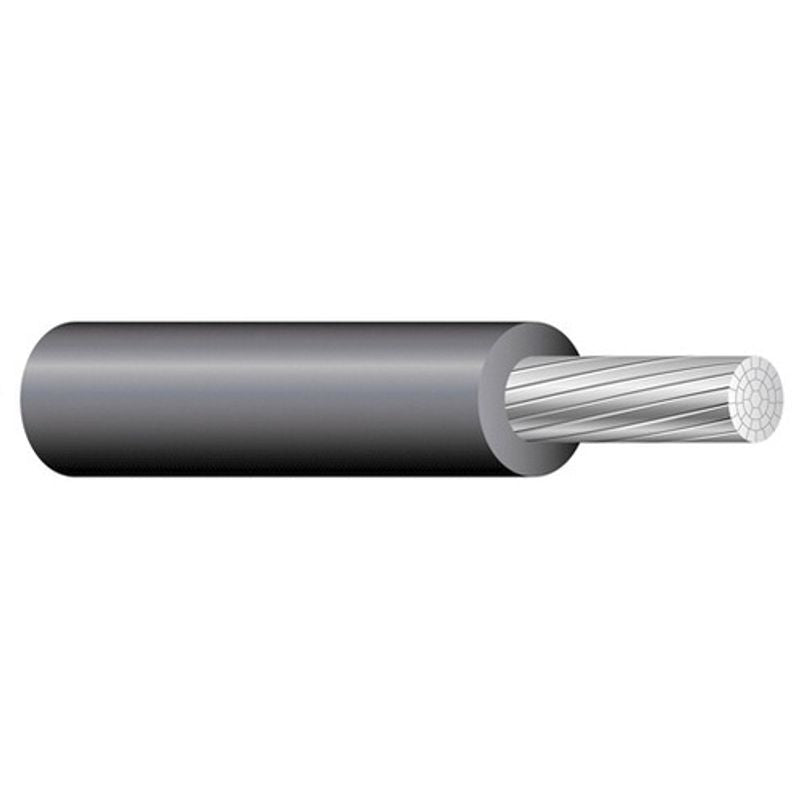

XHHWAL XHHW2STRBRNMR 2/0 AWG Aluminum XHHW-2 Cable, Stranded, Brown, 5000 ft Reel

Product Description

The XHHWAL XHHW2STRBRNMR is a two aught (2/0) AWG aluminum XHHW-2 cable with stranded construction. This cable is designed for versatility in application, featuring cross-linked polyethylene (XLPE) insulation. It is suitable for both wet and dry locations and is rated for 600 volts. With an amperage capacity of 150 amps, it can operate in temperatures up to ninety degrees Celsius (194 degrees Fahrenheit) in dry environments.

The cable comes on a five thousand foot master reel and includes a brown jacket. Its construction consists of eighteen strands, allowing for easy installation without the requirement of pulling lubricant. Highlighting its durability, the insulation thickness measures fifty-five mil, with an outside diameter of four hundred eighty-six mil.

• Suitable for use in both wet and dry environments.
• Compliant with UL 44, NEC NFPA 70, and RoHS standards.
• Flexible installation with eighteen strands.

Product Highlights

Reliability and compliance define the XHHWAL XHHW2STRBRNMR cable, making it a prime choice for electrical installations.

Product Information

Standard Information

• Conductor Material: Aluminum
• Color: Brown

Technical Specifications

• Strands: 18
• Outside Diameter: 486 mil
• Amperage Rating: 150 Amp
• Temperature Rating: 90 degrees Celsius Dry
• Voltage Rating: 600 Volt
• Length: 5000 feet
• Insulation Material: Cross-Linked Polyethylene
• Insulation Thickness: 55 mil
• Packing Type: Master Reel
• Wire Gauge Size: 2/0 AWG
• Standards: UL 44, A-A-59544, NEC NFPA 70, 2014 Edition, NEMA WC-70 (ICEA S-95-658), RoHS Compliant, REACh Compliant
