XHHWAL XHHW1STRREDMR Stranded Copper Building Wire

Product Description

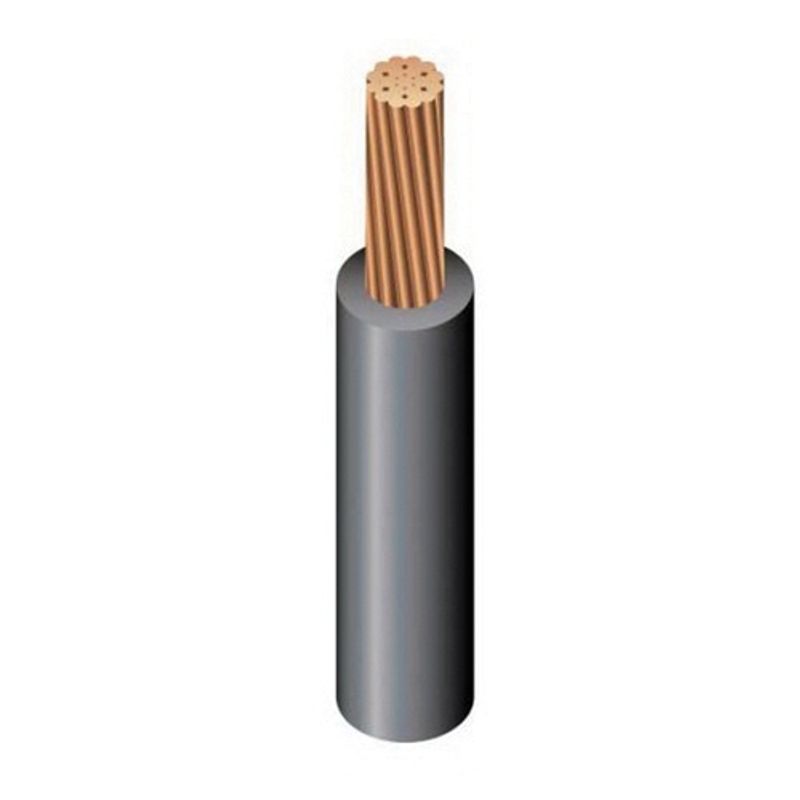

The XHHWAL XHHW1STRREDMR is a stranded copper building wire designed for various electrical applications. This wire features a stranded annealed copper conductor and is insulated with durable polyethylene. Rated for 600V/1kV, it can handle varying amperage ratings depending on the operating temperature. Its specific ratings include 125 Amp at sixty degrees Celsius, 150 Amp at seventy-five degrees Celsius, and 170 Amp at ninety degrees Celsius. The wire has an outside diameter of 0.477 inches and is available in red color.

• Conductor made of stranded annealed copper
• Insulated with polyethylene for durability
• Temperature rating of 90 degrees Celsius

Product Highlights

This wire is suitable for applications where reliable electrical wiring is essential. Its high temperature and voltage ratings make it adaptable for different environments.

Product Information

Standard Information

• Brand: XHHWAL
• MPN: XHHW1STRREDMR

Technical Specifications

• Strands: 19
• Outside Diameter: 0.477 inches
• UOM: feet
• Amperage Rating: 125 Amp at 60 degrees Celsius, 150 Amp at 75 degrees Celsius, 170 Amp at 90 degrees Celsius
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 Volt/1 Kilo-Volt
• Type: XHHW
• Conductor Material: Annealed Copper
• Color: Red
• Insulation Material: Polyethylene
