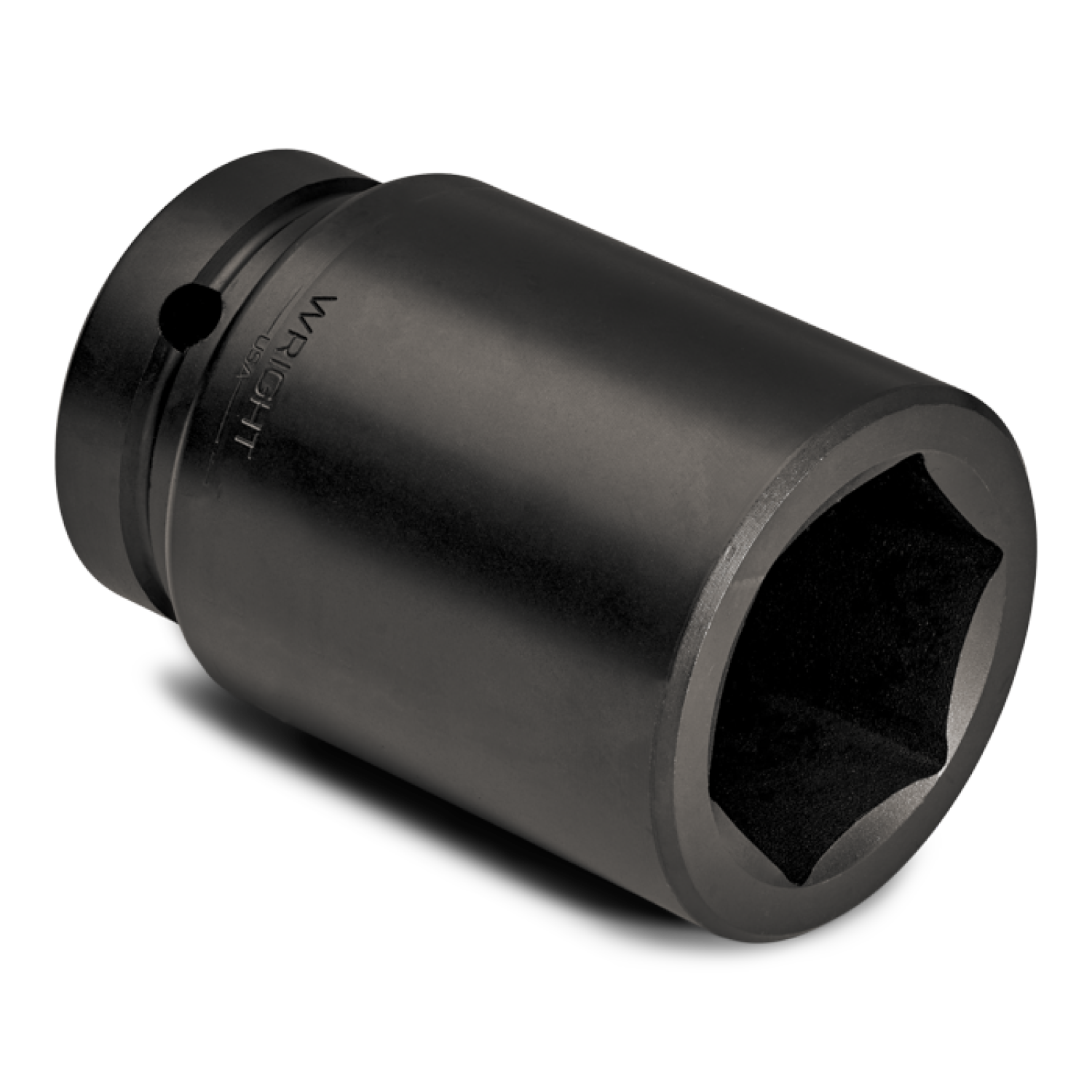

Wright Tool 6940 1-1/4 in 3/4 in Drive 6-Point Deep Impact Socket (1-1/4 in)

Product Description

Wright Tool 6940 is a 3/4 in drive, 1-1/4 in 6-point deep impact socket designed for heavy-duty impact applications. The socket is forged from alloy steel with a black oxide finish, features Wright Drive geometry to distribute contact area, and measures approximately 3.5 in overall length. It is impact rated and meets ASME B107.110 for use with impact wrenches on SAE fasteners.

• 3/4 in square drive with 1-1/4 in socket opening and 6-point configuration for positive fastener engagement
• Hot forged alloy steel construction with black oxide finish; precision heat-treated and tempered
• Deep socket with approximately 3.5 in overall length; patented Wright Drive design; ASME B107.110 compliant

Product Highlights

3/4 in drive, 1-1/4 in deep impact socket; hot forged alloy steel; black oxide finish; 3.5 in overall length; ASME B107.110.

Product Information

Standard Information

• Brand: WRIGHT TOOL
• Manufacturer Part Number: 6940
• Country of Origin: United States

Technical Specifications

• Brand: Wright Tool
• Manufacturer Part Number: 6940
• UPC: 076799069405
• Drive Size: 3/4 in
• Drive Type: Square
• Socket Size: 1-1/4 in
• Number of Points: 6
• Socket Depth: Deep
• Overall Length: 3.5 in
• Opening Depth: 2-27/64 in
• Material: Hot forged alloy steel
• Finish: Black oxide
• Standards: ASME B107.110
• Impact Rated: Yes
• Drive Design: Patented Wright Drive
• Measurement System: SAE (Inch)
• Locking Type: Pin
• Bolt Clearance: 2 13/32 in
• Country of Origin: United States
• Weight: 1.58 lb
• Product Type: Impact Socket
