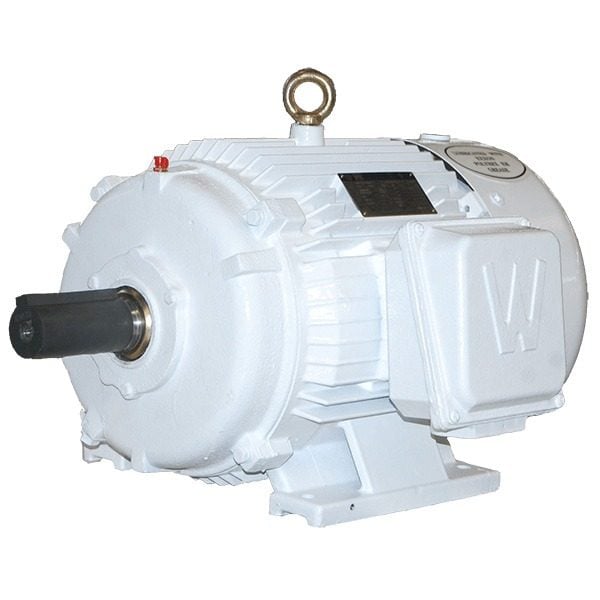

Worldwide Electric IOW30-12-326T Oil Well Pump Motor 30 HP 1200 RPM 326T Frame

Product Description

The Worldwide Electric IOW30-12-326T oil well pump motor supplies high-torque, durable solutions for distributors and OEMs in petroleum extraction, drilling, and hydraulic pump applications. These three-phase, totally enclosed fan cooled motors are designed for maximum runtime and can withstand harsh environments. It has high slip NEMA Design D and oversized bearings for heavy-duty belt drive applications.

• 6 Pole, 5-8% Slip, Design D
• Roller Bearing on DE 400T frame and up
• IP54 Protection, Inverter Duty - 10:1 CT / 20:1 VT

Product Highlights

Designed for maximum runtime and can withstand the harsh environments present in the oil well industry.

Product Information

Standard Information

• Brand: WORLDWIDE ELECTRIC
• Manufacturer Part Number: IOW30-12-326T

Technical Specifications

• Degree of Protection: IP54
• Enclosure Type: TEFC
• Frame Size: 326T
• Frequency: 60/50 HZ*
• Horsepower: 30
• Insulation Class: Class F
• Mounting Type: Rigid Base
• Phase: Three-Phase
• RPM: 1200
• Service Factor: 1.15
• Voltage: 230/460/796
• Model#: IOW30-12-326T
• Catalog#: IOW30-12-326T
• Type: Oil Well Pump
• Motor Type: TEFC
• Poles: 6-pole design
• Slip: 5-8% slip
• Design: NEMA Design D
• Efficiency: Standard efficiency
• Protection: IP54 rating
• Inverter Duty: 10:1 constant torque (CT) 20:1 variable torque (VT)
• Construction: Cast iron frame with steel fan cover
• Mounting: F2 mount
