Woods WOODS-SD158 Sure-grip Bushing Cast Iron

Product Description

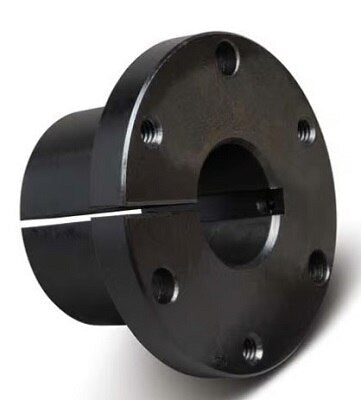

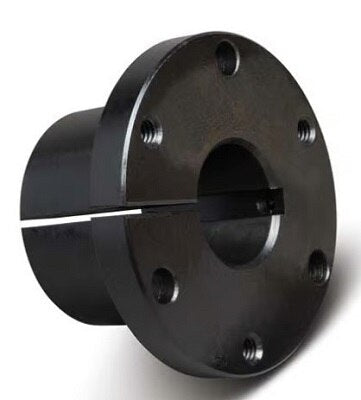

The WOODS WOODS-SD158 is a Sure-Grip taper-lock style bushing machined from cast iron for use in power transmission assemblies. It seats into a compatible sheave, sprocket, or coupling hub and locks to a shaft via a tapered bore interface, transmitting torque without requiring a separate retaining device. The bushing features a 1.625 inch bore, a 2.1875 inch outer diameter, and a body length of 1.31 inches. It is rated for up to 5,000 lbs/in torque, making it suitable for moderate- to heavy-duty drive applications in industrial and mechanical systems.

Sure-Grip bushings of this type are commonly installed in belt-drive systems, chain-drive assemblies, and direct-coupled equipment found in HVAC fan arrays, pump drives, conveyor systems, and general industrial machinery. The SD158 designation identifies the bushing bore and series, which must match the corresponding hub or sheave bore seat to ensure proper fit and torque transfer. Installation is performed by millwrights, maintenance technicians, or mechanical contractors during equipment assembly or shaft replacement service.

Key Features

• Cast iron construction for strength and wear resistance in industrial drive applications
• 1.625 inch bore diameter for precise shaft fit
• 2.1875 inch outer diameter sized to match compatible Sure-Grip hub seats
• 1.31 inch body length for compact installation in space-limited drive assemblies
• 5,000 lbs/in torque rating supports moderate- to heavy-duty power transmission loads
• Inch-dimensioned series for use with standard imperial shaft and hub specifications

Compatibility

Designed as an OEM-style replacement bushing for use with Sure-Grip compatible sheaves, sprockets, and coupling hubs sized to the SD158 bore series with a 1.625 inch bore seat.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out the drive system before removing or installing any bushing. Ensure the shaft and hub bore seat are clean and free of burrs before seating the bushing. Do not over-tighten or use impact tools on the bushing cap screws without reference to the hub manufacturer torque specification.

Technical Specifications

• Bore Diameter: 1.625 inches
• Outer Diameter: 2.1875 inches
• Length: 1.31 inches
• Torque Rating: 5,000 lbs/in
• Material: Cast Iron
• Measurement System: Inch

Standard Information

• Brand: WOODS
• Manufacturer Part Number: WOODS-SD158
