Product Description

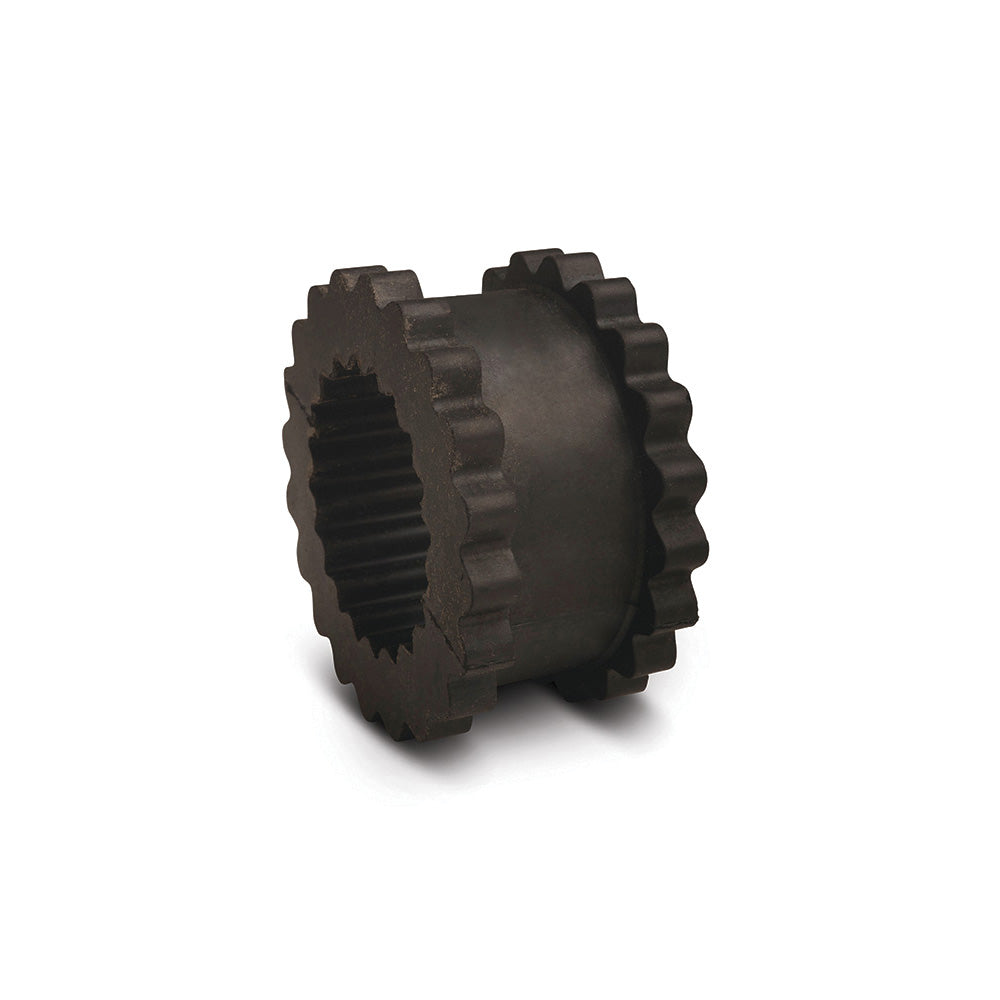

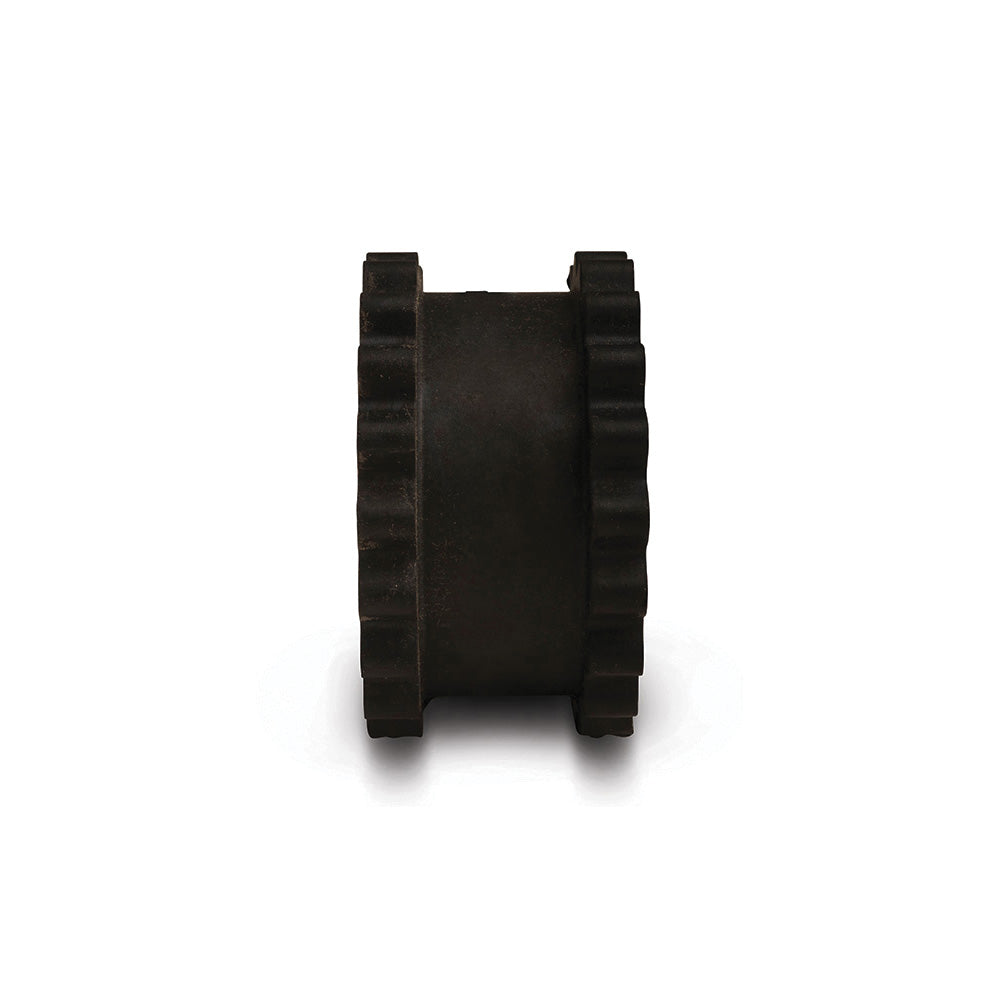

The WOODS 6JE Sure-Flex EPDM Coupling Sleeve is a flexible coupling designed for use with Sure-Flex Plus Flanges and elastomeric couplings. Made from EPDM, it is durable against wear, corrosion, and can handle temperatures between minus thirty to two hundred seventy-five degrees Fahrenheit. This one-piece sleeve fits a size six coupling with an outside diameter of three and three-quarters inches, an inside diameter ranging from five-eighths to one and seven-eighths inches, and a length of one and seven-eighths inches. It is suited for operation at a max speed of six thousand revolutions per minute and can manage a torque rating of five hundred eighty-five inch-pounds. The design allows for some misalignment and vibration reduction between connected components.
- EPDM material offers durability against wear, corrosion, and extreme temperatures.
- Accommodates shaft misalignment and vibration, which reduces stress on connected parts.

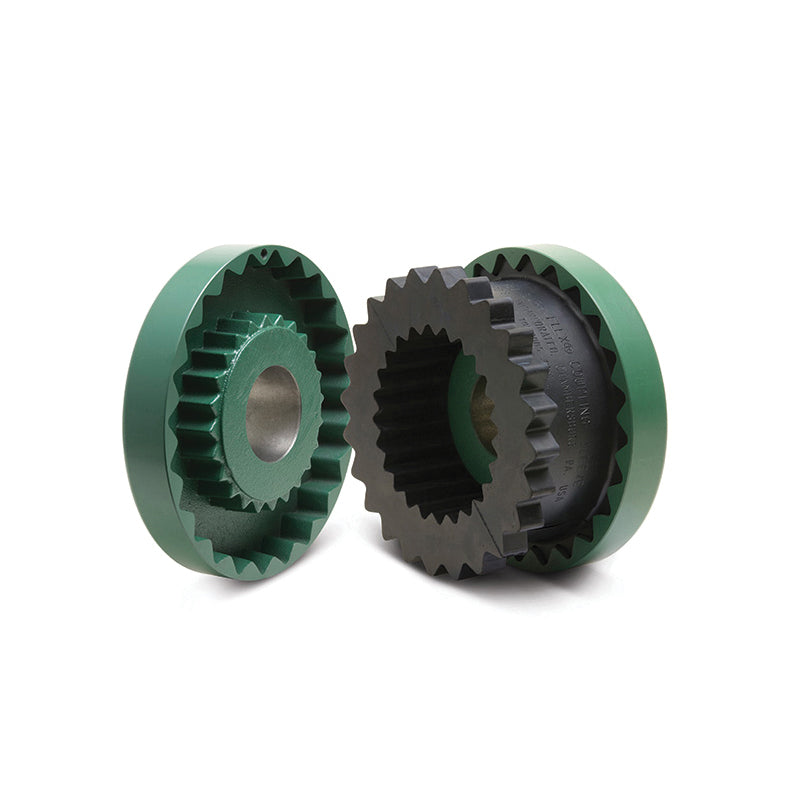

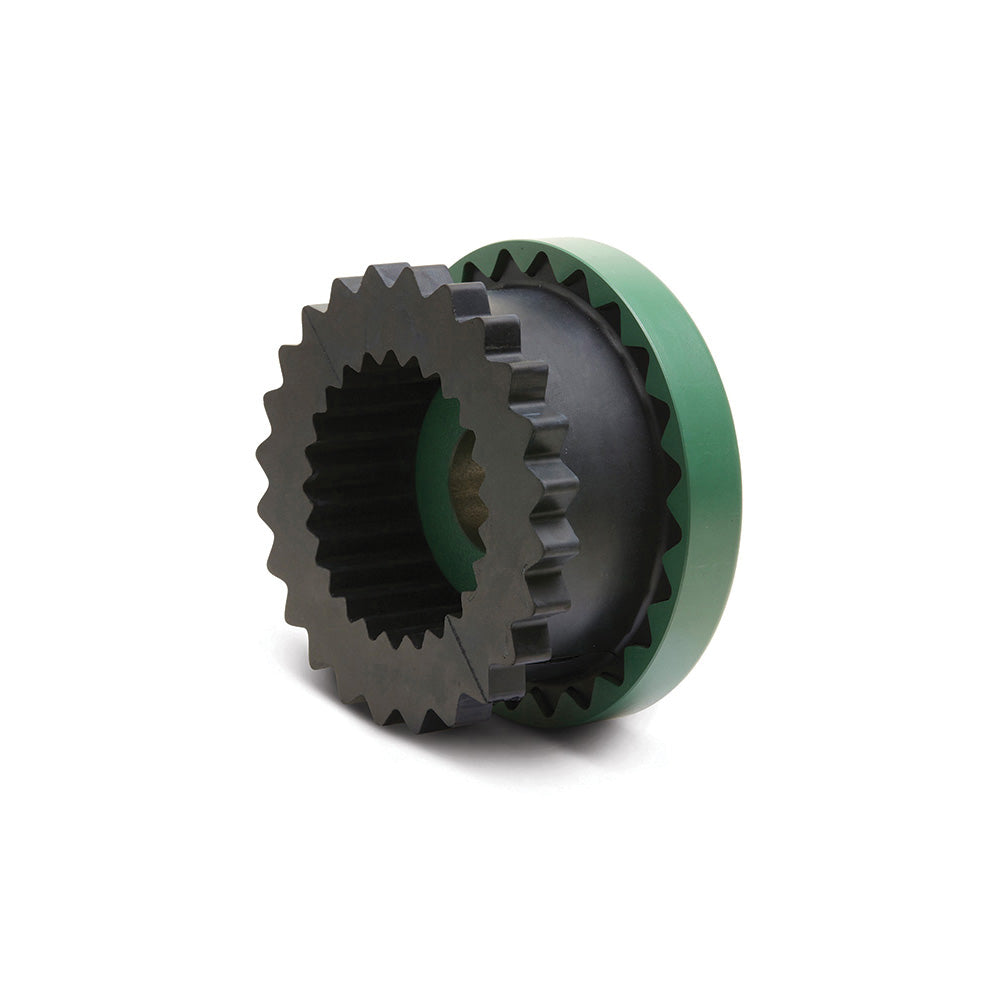

- Designed for use with Sure-Flex Plus Flange and elastomeric couplings.
Product Highlights
Reliable coupling solution for HVAC systems, ensuring performance under varied conditions.
Product Information
Standard Information
-
Brand: WOODS
-
Type: Flexible Coupling Sleeve
Technical Specifications
-
MPN: 6JE
-
Coupling Size: 6
-
Length: 1-7/8 inches
-
Inside Diameter: 5/8 to 1-7/8 inches
-
Outside Diameter: 3-3/4 inches
-
Torque Rating: 585 inch-pounds
-
Maximum Speed: 6000 RPM
-
Temperature Rating: -30 to 275 degrees Fahrenheit
-
Material: EPDM
-
Item Number: 6JE
-
Collection: Oil Burner Parts
