WOODS 5J Sure-Flex EPDM Sleeve

Product Description

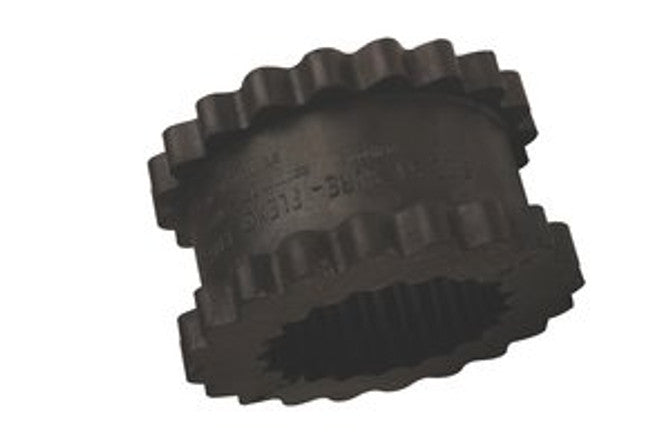

The WOODS 5J Sure-Flex EPDM Sleeve is a solid type JE insert designed to work with Sure-Flex Plus flanges and elastomeric couplings. Made from EPDM, it functions in temperatures from negative thirty to two hundred seventy-five degrees Fahrenheit. This sleeve fits shaft sizes from one half to one and one-quarter inches in inside diameter. The dimensions include a length of one and nine sixteenths inches and an outside diameter of two point nine three seven five inches. It can handle a maximum speed of seven thousand six hundred RPM and torque up to three hundred twelve in-lb. Additionally, it supports up to one degree of angular misalignment and a maximum parallel misalignment of zero point fifteen inches.

• Made from EPDM for improved temperature resistance

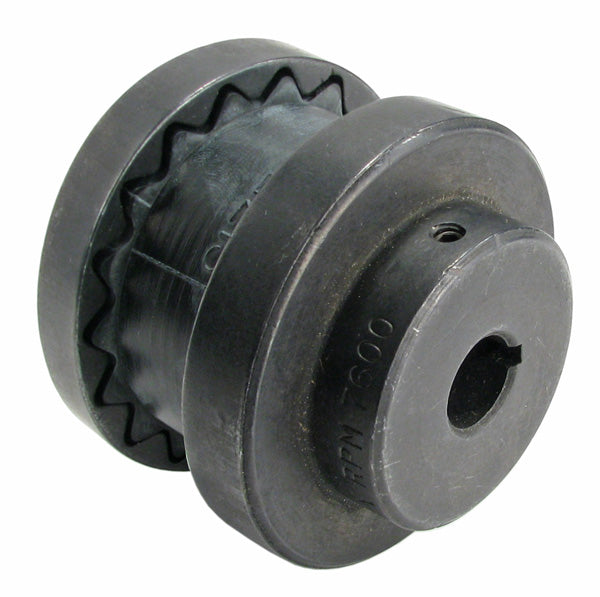

• Suitable for Sure-Flex Plus flanges
• Accommodates shaft sizes from one half to one and one-quarter inches

Product Highlights

This EPDM sleeve provides reliability for various motor applications, making it essential for HVAC systems.

Product Information

Standard Information

• Manufacturer: WOODS
• Coupling Size: 5

Technical Specifications

• Finish: Black
• Inside Diameter: 1/2 to 1-1/4 inches
• Length: 1-9/16 inches
• Material: EPDM
• Maximum Speed: 7600 RPM
• Outside Diameter: 2.9375 inches
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Torque Rating: 312 in-lb
• Type: 1-Piece Solid
