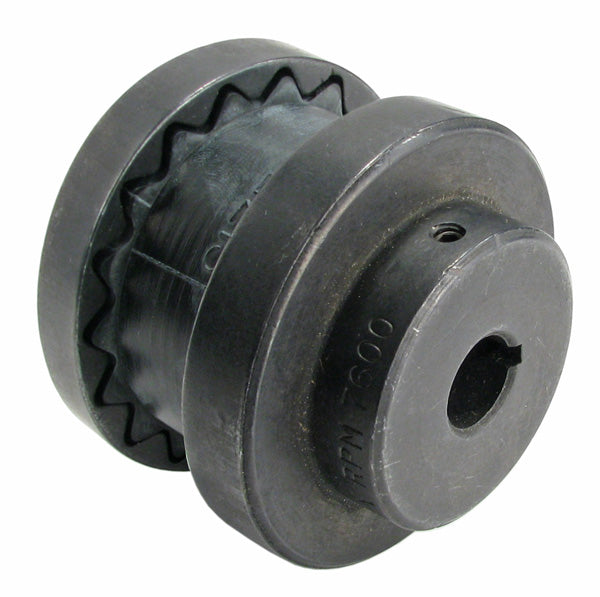

WOODS 4JE Coupling with EPDM Rubber Sleeve 1/2 x 5/8

Brand: WOODS
SKU: 4JE
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$24.32
$24.32
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

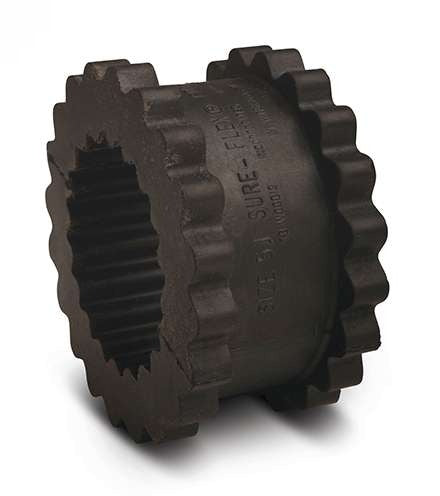

The WOODS 4JE Coupling features a solid EPDM rubber sleeve. This coupling is designed to absorb shock, misalignment, and end float through four-way flex action. It is suitable for various applications in HVAC systems.

  • Four-way flex action to absorb shock and misalignment
  • Suitable for retrofitting existing flanges
  • No lubrication required for maintenance

Product Highlights

This coupling operates effectively within a wide temperature range and supports high RPM operations.

Product Information

Standard Information

  • Brand: WOODS
  • Type: Coupling

Technical Specifications

  • Stiffness: 458 in·lb/rad
  • Operating Temperature Range: -30 to +275 °F
  • Torque Capacity: 156 in-lbs
  • Overall Length: 1-1/4 inches
  • Sleeve Material: EPDM
  • Sleeve Construction: One Piece Solid
  • Maximum Parallel Misalignment: 0.010 inches
  • Maximum Angular Misalignment: 1 °
  • Horsepower at 100 RPM: 0.2 hp
  • Maximum RPM: 7600 rpm
  • Coupling Outside Diameter: 2-5/16 inches
