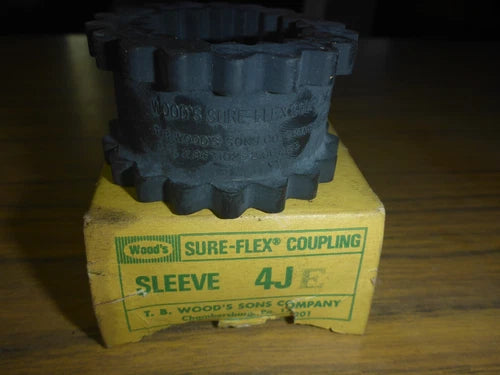

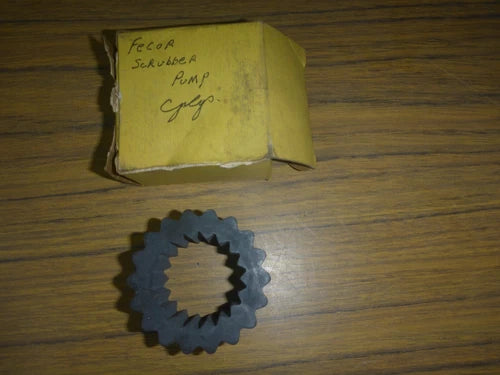

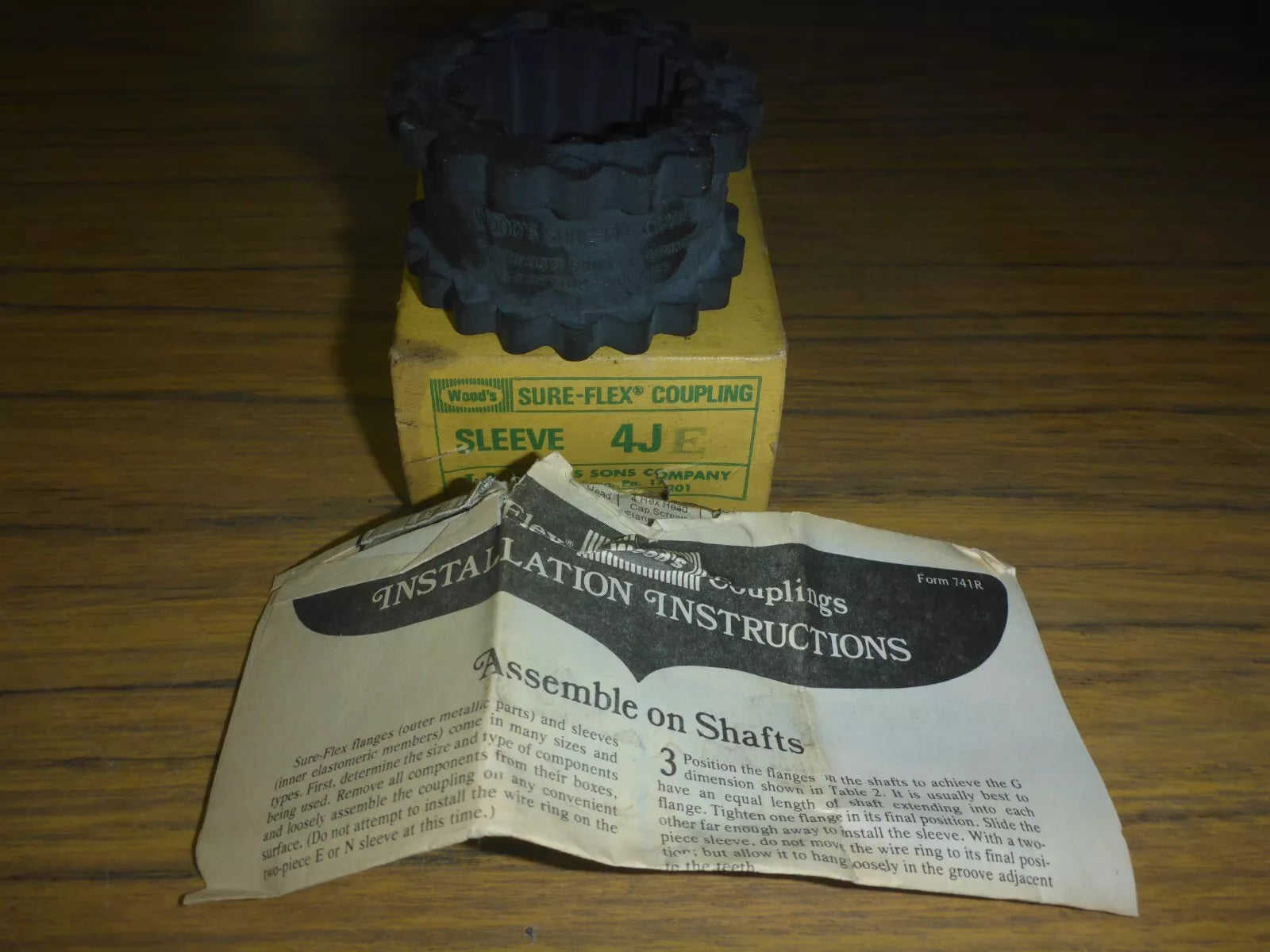

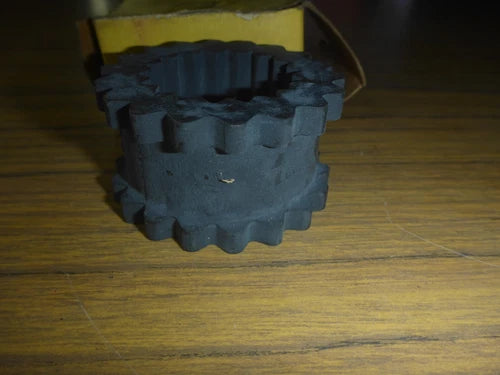

Woods 4J Coupling Sleeve - EPDM Rubber - HVAC Parts

Product Description

The Woods 4J coupling sleeve is designed for use with Sure-Flex Plus flanges and elastomeric couplings. Made from EPDM rubber, it operates effectively in a temperature range from negative thirty to two hundred seventy-five degrees Fahrenheit. The coupling sleeve fits inner diameters from one-half inch to one and one-eighth inches. Its outer diameter is two and five-sixteenths inches and it measures one and one-quarter inches long. The maximum torque capacity is rated at one hundred fifty-six inch-pounds. It can support operational speeds of up to seven thousand six hundred revolutions per minute.

• EPDM construction suitable for temperatures from -30 to 275 degrees Fahrenheit.
• Compatible with Sure-Flex Plus flanges and elastomeric couplings.
• Rated for a maximum torque of 156 inch-pounds and can handle speeds up to 7600 rpm.

Product Highlights

This coupling sleeve is a crucial component for many HVAC applications, ensuring reliable connectivity and durability in various environments.

Product Information

Standard Information

• MPN: 4J
• Brand: WOODS

Technical Specifications

• Coupling Type: 4
• Length: 1-1/4 inches
• Inner Diameter: 1/2 to 1-1/8 inches
• Outer Diameter: 2-5/16 inches
• Maximum Torque: 156 inch-pounds
• Maximum RPM: 7600 rpm
• Temperature Range: -30 to 275 degrees Fahrenheit
• Material: EPDM
• Type: 1-Piece Solid Type JE
• For Use With: Sure-Flex Plus Flange and Elastomeric Coupling
